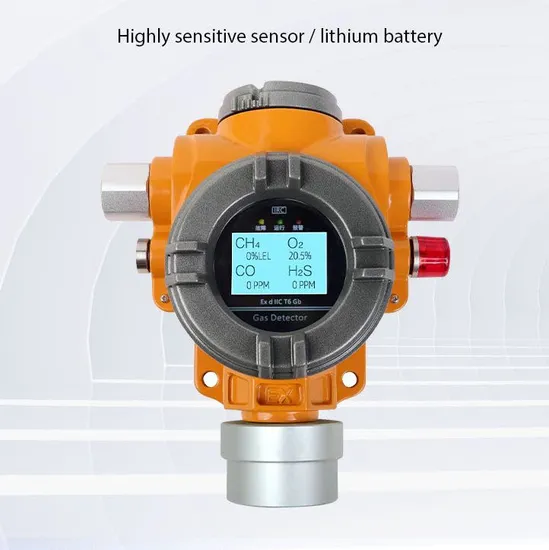

Online Fixed Multi Gas Monitor Fixed 4 in 1 Gas Detector

Product Description

Products Description Can detect 4 kinds of gases at the same time Any combustible, flammable, toxic, oxygen, TVOC gas could be detected by the referred detector, for more detailed infos, pls contact us by cilicking this link. The fixed 4-in-1 gas detector is a high-performance fixed gas detector developed by our company, which is used for long-term continuous monitoring of combustible toxic and harmful gases in the air. It can continuous detect max 4 kinds of gas and display real timely, detect gas concentration by Natural diffusion. The standard 4 gas are CO O2 H2S and combustible gas, other gas can be combined flexibly. Product Parameters

Product name	industrial online 4-in-1 stand alone fixed gas detector
Product Size	22*19*9cm
Packing size	26*23*13cm
Battery	DC24V±10%
Working environment	- 20 ~ 50 , 15% ~ 90% RH (No condensation)
Detection principle	catalytic/electrochemical/Infrared
Alarm method	Light/sound
Sampling	Natural diffusion
Resolution	1% lel 1 ppm / 0.1 ppm
Measurable gas	flammable, toxic, harmful gas
Applications	Chemical plants, mines, oil refineries, pharmaceutical plants, metallurgical plants, gas stations, liquefied gas stations, brewing, hotel kitchens
Measure range and resolution	EX:0-100%lel 1 %lelO2:0-30%vol 0.1%vol CO:0-2000ppm 1ppm or 0-1000ppm 1ppm H2S:0-200ppm 1ppm
Feature	Support a variety of gas customization (customized diversified products according to different industrial and mining)
Output signal	RS485 digital or Two bus wire
Explosion-proof number	CE10 1084
Explosion-proof marks	Exd II CT6
Control signal	Switch output, the maximum load 250 V AC 3A(optional)
Standard package	Gas detector, Instruction in English, Certificate, carton package

Product characteristics Detection accuracy, range adjustable, 4-20MA protocol and 485 protocol optional
Long life, high sensitivity, low drift, stable and reliable work
Sensor fault self-check, two-level concentration alarm, with relay output function
LCD gas concentration digital display and working state display
With temperature compensation, automatic zero point correction function
Infrared remote control mode, the detector can be adjusted without opening the cover, safe and convenient, remote control calibration; Configuring remote control Detailed Images Click here to ask us for any detailed information about gas detectors! Multi-gases Choices NOTICE: NKYF specializes in the production of various types of gas detectors. If you are not sure which product to choose and what scenario is suitable for use, please feel free to contact us for free professional advice Except belowing normal gases, other gases and measuring ranges are all support customized, please click to contact us for more details

Measured gas	Measuring range	Selectable range	Resolution
Combustible Ex	0-100%LEL	0-100%VOL	1%LEL/1%VOL
Oxygen O2	0-30%VOL	0-30%0-100%VOL	0.1%VOL
Hydrogen Sulfide H2S	0-100PPM	0-502001000PPM	0.1/1PPM
carbon monoxide CO	0-1000PPM	0-500/2000/5000PPM	0.1/1PPM
nitrogen dioxide NO2	0-20PPM	0-501000PPM	0.1/1PPM
natural gas	0-100%LEL	0-100%LEL	1%LEL
Nitrogen oxides	0-20PPM	0-501000PPM	0.1/1PPM
Methane CH4	0-100%LEL	0-100%LEL	1%LEL/1%VOL
carbon dioxide CO2	0-5000PPM	0-1%5%10%VOL	1PPM/0.01%VOL
Nitric oxide NO	0-250PPM	0-5001000PPM	1PPM
nitrogen N2	0-100%LEL	0-100%VOL	1%VOL
Alcohol	0-100%LEL	0-100%LEL	1%LEL/1%VOL
Sulphur dioxide SO2	0-20PPM	0-501000PPM	0.1/1PPM
Chlorine CL2	0-20PPM	0-10100PPM	0.1PPM
Dichlorosilane	0-20PPM	0-20100PPM	1PPM/0.1PPM
Ammonia NH3	0-100PPM	0-505001000PPM	0.1/1PPM
Silicon tetrachloride	0-20PPM	0-20100PPM	1PPM/0.1PPM
Hydrogen H2	0-100%LEL	0-1000PPM	1%LEL/1PPM
Phosphine PH3	0-20PPM	0-200-100PPM	0.01/0.1PPM
Hydrogen chloride HCl	0-20PPM	0-2050100PPM	0.01/0.1PPM
Acrylonitrile	0-100PPM	0-100PPM	1PPM/0.1PPM
TVOC	0-100PPM	0-100PPM	1PPM/0.1PPM
CLO2	0-50PPM	0-10100PPM	0.1PPM
Hydrogen cyanide HCN	0-50PPM	0-100PPM	0.1/0.01PPM
Ethylene oxide ETO	0-10PPM	0-100PPM	1PPM/0.1PPM
Ozone O3	0-10PPM	0-20100PPM	0.011PPM/0.1PPM
Formaldehyde CH2O	0-20PPM	0-50100PPM	1/0.1PPM
Fluorine gas F2	0-10PPM	0-110PPM	1PPM/0.1PPM
Hydrogen fluoride HF	0-10PPM	0-11050100PPM	0.01/0.1PPM
Xylene, Toluene	0-20PPM	0-51050100PPM	0.01/0.1PPM
malodor	0-100PPM	0-100PPM	1PPM/0.1PPM
