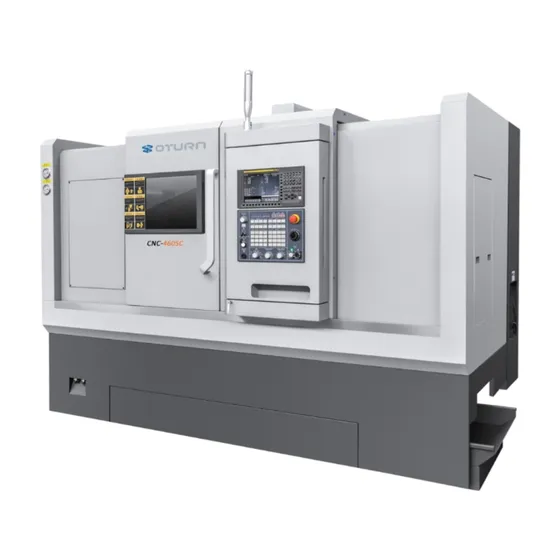

Oturncnc 460sc Horizontal Heavy Duty CNC Turning and Milling Lathe Double Dual Spindle CNC Turning Center with Y Axis

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle time.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.Y-axis adopts 100MM stroke (±50 from the center line), capable of eccentric milling, drilling and tapping, equipped with a high-torque power turret and a servo-driven C-axis, capable of processing complex parts.
4.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
5.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
6.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
7.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. At the same time, various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Item		Specification
Bed	The bed and base are made of high-quality cast iron, and the bed is slanted at 30°.
Processing range	Maximum rotation diameter of bed	500mm
	Maximum processing diameter of discs	400mm
	Maximum processing diameter of the carriage	400mm
	Maximum processing length of ball material	360mm
	Maximum rod hole diameter	Main: Φ45mm / Auxiliary: Φ45mm
Travel Feed	X-axis maximum travel	200mm
	Z1/Z2 axis maximum travel	400/400mm
	Y-axis maximum travel	±45mm
	Chuck spacing	0-500mm
	X/Z1/Z2/Y axis rapid movement rate	20m/min
	X/Z1/Z2/Y screw diameter/pitch	32/10mm
	X/Z1/Z2/Y linear guide width	35mm
	X-axis servo motor	β22(with brake)
	Z1/Z2 axis servo motor	β12/12
	Y-axis servo motor	β12
	Turret servo motor	3N.m
	Power head servo motor	β12
Precision	X/Z1/Y axis positioning accuracy	±0.003mm
	X/Z1/Y axis repeat accuracy	±0.003mm
Spindle	Spindle nose type	Main: A2-5 / Auxiliary: A2-5
	Spindle through hole diameter	Main: Φ56mm / Auxiliary: Φ56mm
	Spindle maximum speed	Main: 4000 rpm / Auxiliary: 6000 rpm
	Spindle servo motor power	Main: 7.5/11KW / Auxiliary: 10/23.6KW(electric spindle)
	Chuck/rotary cylinder	Main: 6 inches / Auxiliary: 6 inches
Power head	90° power head	ER25 / 4000 rpm
	0° power head	ER25 / 4000 rpm
Turret	Turret specifications	BMT45/15 stations
	Tool holder specifications	20×20
	Boring tool holder	Φ25mm
Other	Total capacitance	44KW
	Machine tool net weight	About 4900Kg
	Machine size (length*width*height)	2750×1700×1800mm
