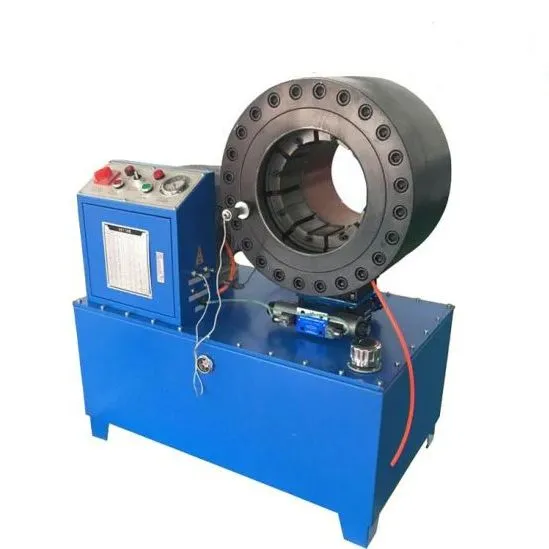

Compact Hose Crimping Machine Hydraulic Coupling Machine
Basic Info.
Model NO.
1/4′′--2′′
Certification
CE, ISO
Condition
New
Customized
Non-Customized
Automatic Grade
Automatic
Structure
Horizontal
Model Number
Dx68
Crimping
1/4′′~2′′
Max Opening
114mm
Max Crimping Force
500t/5000kN
Crimping Efficiency
200 PCS/H
Motor Voltage
380V/3kw or 220V/2.2kw
Dies
10set
Application
High Pressure Rubber Pipe Assembly
Gross Weight
260kg
Machine Size
730*480*740mm
Useful
Buckling The Two-Way Bends
Transport Package
Wooden Box
Specification
10-87
Trademark
STRONGFLEX; OEM brand
Origin
China
Product Description
Model DX68 hose crimping machine is mainly used for crimping processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. Product Description| Model number | DX68 |
| Crimping | 1/4''~2'' |
| Max crimping force | 500T/5000KN |
| Crimping efficiency | 200 pcs/H |
| Max opening | 114 mm |
| Opening | ±30mm |
| Rated pressure | 31.5 MPa |
| Motor power / voltage | 380V/3KW or 220V/2.2KW |
| Crimping period | 12s (380V) or 15s (220V) |
| Motor Flow | 2.5L |
| Crimping percision | 0.01 mm |
| Die quantity | 10 sets |
| Die number | 15.19.23.26: length-60 mm 31.3641: length-70 mm 4755.60: length-80 mm |
| Gross Weight | 260KG |
| Machine Size | 730*480*740mm |
| Packing Size | 800*530*870mm |
Certifications
Packaging & Shipping
Packing: Wooden pallets
Feedback
Company Profile
FAQ
1. Q: What is your terms of packing? A: Standard plastic/woven belt wrap or wrapped according to the customer's requirement2. Q: Can you produce according to the sample? A: Yes, OEM service available. We can produce by your samples or technical drawings.3. Q: What is your sample policy? A: Samples available if we have ready part in stock, shipping cost is on buyer's side.4. Q: How do you guarantee your quality and what after-sale service do you have? A: Our factory follow the quality standard in every producing process. Any quality problem within 3 months after purchase, we are responsible for it.5. Q: How long does my order take to be delivered? A: It generally takes 5-30days, depends on the order.
