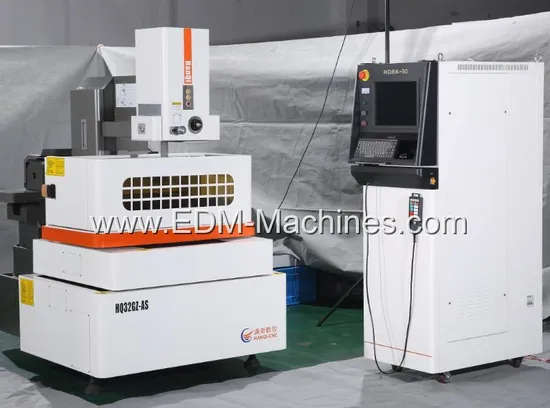

Closed Loop Wire Cut EDM Machine Wedm Servo Machine
| US$18,888.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HQ32GZ-AS
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.0025mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Driver
Servo Motor, Screw Error Compensation
Transport Package
Plywood
Specification
HQ40GZ-AS
Trademark
HANQI EDM
Origin
China
HS Code
84561090
Production Capacity
600 Sets
Product Description
| 32GZ-AS | 40GZ-AS | 50GZ-AS | 63GZ-AS | |
| Main machine | ||||
| Machine dimension (L×W×H) | 1680×1200×2300mm | 1810×1350×2300mm | 2100×1450×2400mm | 2300×1600×2400mm |
| Machine weight | 2000 kg | 2500 kg | 3000 kg | 3800 kg |
| Travels(XY) | 400×320 mm | 500×400 mm | 630×500 mm | 800×630 mm |
| Travel Z | 300 (electrical) mm | 300 (electrical) mm | 300 (electrical) mm | 300 (electrical) mm |
| U × V travels | 36×36 mm | 36×36 mm | 36×36 mm | 36×36 mm |
| Size of worktable | 740×470 mm | 800×510 mm | 910×680 mm | 1140×750 mm |
| Size of work tank | 980×550 mm | 1180×710 mm | 1310×795 mm | 1400×940 mm |
| X, Y axes resolution | 0,001 mm | 0,001 mm | 0,001 mm | 0,001 mm |
| Max cutting taper | ±3° / 80 mm | ±3° / 80 mm | ±3° / 80 mm | ±3° / 80 mm |
| Max cutting thickness | 320 mm | 320 mm | 320 mm | 320 mm |
| Workpiece | ||||
| Max workpiece size | 960×530×320 mm | 1160×690×320 mm | 1290×775×320 mm | 1380×920×320 mm |
| Max workpiece weight | 400 kg | 500 kg | 600 kg | 800 kg |
| Construction | ||||
| Work type | Flushing | Flushing | Flushing | Flushing |
| Machining technology | ||||
| Max machining current | 10 A | 10 A | 10 A | 10 A |
| Max cutting speed | >200 mm²/min | >200 mm²/min | >200 mm²/min | >200 mm²/min |
| Multiple cutting precision | ≤ ± 0.0025mm | ≤ ± 0.0025mm | ≤ ± 0.0025mm | ≤ ± 0.0025mm |
| Best surface roughness (Ra) | ≤0.7µm | ≤0.7µm | ≤0.7µm | ≤0.7µm |
| Filtration | Brass WEDM type filter | Brass WEDM type filter | Brass WEDM type filter | Brass WEDM type filter |
| CNC control system | ||||
| Display | 15' color LED inch | 15' color LED inch | 15' color LED inch | 15' color LED inch |
| Programmable axes | XYUV-axes (simultaneous 4 axes control) | XYUV-axes (simultaneous 4 axes control) | XYUV-axes (simultaneous 4 axes control) | XYUV-axes (simultaneous 4 axes control) |
| Operation system | Windows XP | Windows XP | Windows XP | Windows XP |
| Interpolation | Linear / circle | Linear / circle | Linear / circle | Linear / circle |
| Interface | USB & RS232 & LAN interface | USB & RS232 & LAN interface | USB & RS232 & LAN interface | USB & RS232 & LAN interface |
| Others | ||||
| Wire diameter | Ø0,12 - Ø0,2 mm | Ø0,12 - Ø0,2 mm | Ø0,12 - Ø0,2 mm | Ø0,12 - Ø0,2 mm |
| Auto wire threading system | No | No | No | No |
| Power supply system | ||||
| Power input | 2.3 KW | 2.8 KW | 3.0 KW | 3.5 KW |
| Power source | 380V (±10%) 50Hz~60Hz | 380V (±10%) 50Hz~60Hz | 380V (±10%) 50Hz~60Hz | 380V (±10%) 50Hz~60Hz |
Wire Cut EDM Machine Key Parts List
| Linear guideway | HIWIN P3 grade linear guideway |
| Ball screw | HIWIN silver C3 grade precision ball screw |
| Wire drum | HIWIN P3 grade linear guideway |
| U, V axis taper device | HIWIN P3 grade linear guideway |
| Bearings | Germany NEY precision bearing |
| Computer | Special industrial computer |
| Display | Industrial Display |
| Electrolytic capacitors | Japan Ruby or King Kong |
| X, Y axis servo motor | Japan Panasonic AC servo motor |
| Wire guider | Special type diamond guider for wire |
| Filtration systems | Brass WEDM type water filter |
| Z-axis electric lift | Electric type |
| Guide wheel | Special thickness guide wheel |
| Multifunction fixture | Brass WEDM type fixture |
| High-strength body structure | T sharp machine bed |
| Wire constant tension device | 2 sets constant tension device |
| High frequency pulse power | Japan technology, high speed, low roughness |
| Electrical | Schneider |
