Hpr130 260 400 Plasma Electrode Nozzle Shield 220181 220187 220182 220183 220194 220436 220571 Plasma Cutting Consumables

Product Description

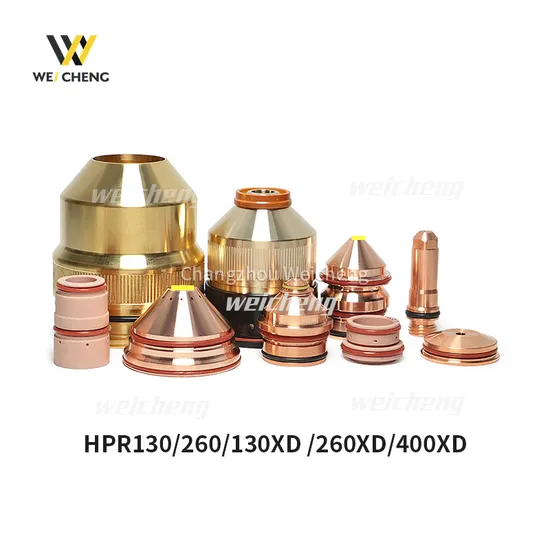

HPR130 260 400 Plasma Cutting Consumables Electrode Nozzle Shield 220181 220187 220182 220183 220194 220436 220571
What are the advantages of HPR130260 Consumables?
HPR130XD plasma is Hyperther's fine series power supply, which is the smallest fine plasma of Hyperther. It can cut metal materials within 0.5mm-45mm. WEICHENG specializes in Hyperther plasma consumables, with sufficient inventory and low prices. HPR130XD plasma consumables are one of our company's key promoted products
1. The HPR high-performance plasma system provides HyDefinition with high precision cutting quality, but the operating cost is only half of the latter.
2.The HPR high-performance plasma system integrates Hyperther's proven HyDefinition high-precision technology, LongLife long-life technology, perforation technology, and True Hole precision circular hole technology, achieving overall performance, production efficiency, and profitability
3. The system has process flexibility and can cut, groove, and mark metals with a thickness of up to 160 mm Detailed Photos
Part Number:
220179 220353 220180 220553 220436 220631
Plasma Power Source:HPR130 260 cutting torch
NOZZLE: The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut. A nozzle with a larger opening is used for gouging, while a nozzle with a smaller opening is better able to direct the gas and so is used for fine, detailed work.
ELECTRODE: The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
Retaining cap:
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.
Shield cap:
The shield is there to protect the torch and its other components from the sparks and molten metal that result from the plasma cutting process. It takes the brunt of the fallout so that wear to other components is minimised as much as possible.
We will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.

PMX65A/85A/105A	220842	Electrode	PMX125A	220971	Electrode
	220941	Nozzle		220975	Nozzle
	220816	Nozzle		420158	Nozzle
	220819	Nozzle		420169	Nozzle
	220990	Nozzle		420168	Shield
	220817	Shield		420156	Shield
	220993	Shield		220976	Shield
	220857	Vortex Ring		420000	Shield
	220994	Vortex Ring		220997	Vortex Ring
	220854	Fixed Cover		220977	Fixed Cover
	220953	Fixed Cover		428144	/
	220818	Shield		428145	/
	220992	Shield		428548	/
	220948	Shield		428147	Noumenon
	220955	Shield	PMX1250A	120926	Electrode
	220931	Shield		120927	Nozzle
	220930	Nozzle		120931	Nozzle
	220947	Vortex Ring		120932	Nozzle
	220797	Nozzle		120980	Nozzle
	220991	Nozzle		220007	Nozzle
	220798	Nozzle		220006	Nozzle
	228716	Noumenon		120929	Shield
	228735	/		120930	Shield
	228737	/		120925	Vortex Ring
/	/	/		120928	Fixed Cover
MAX200 HT2000	220021	Electrode	GPR130	220181	Electrode
	20608	Nozzle		220182	Nozzle
	20605	Nozzle		220183	Shield
	20689	Nozzle		220187	Electrode
	20690	Nozzle		220188	Nozzle
	20424	Shield		220189	Shield
	20448	Shield		220179	Vortex Ring
	20607	Vortex Ring		220176	Fixed Cover
	120837	Fixed Cover		220756	Fixed Cover
	20423	Fixed Cover		220173	Fixed Cover
	20963	Water Pipe		220747	Fixed Cover
HPR260	220352	Electrode	HSD130	220487	Electrode
	220354	Nozzle		220525	Nozzle
	220353	Vortex Ring		220530	Nozzle
	220761	Shield		220489	Nozzle
	220356	Shield		220492	Nozzle
	220435	Electrode		220532	Shield
	220439	Nozzle		220491	Shield
	220764	Shield		220536	Shield
	220436	Vortex Ring		220488	Vortex Ring
	220760	Fixed Cover		220890	Nozzle
	220637	Fixed Cover		220892	Nozzle
	220571	Water Pipe		220891	Nozzle
	220340	Water Pipe		220521	Water Pipe
MAXPRO200	220528	Electrode		220529	Vortex Ring
	220578	Fixed Cover	IF YOU NEED OTHER MODELS YOU CAN CONSUL CUSTOMER SERVICE
	220937	Electrode
	420044	Nozzle
	420045	Shield
	220488	Vortex Ring
	220936	Fixed Cover
	220935	Fixed Cover
	220831	Nozzle
	220832	Shield

Why choose weicheng plasma consumables?
1.Excellent perforation ability:
Plasma consumables can smooth cut / cut flat
Our Plasma spare parts can cut iron plate/aluminym plate/steel plate
2.Our Plasmas Consumables have long life with high cost performance more excellent than other brands
Product Recommendations
Company Profile
About our factory
Changzhou Weicheng Welding and Cutting Manufacturer Co.,Ltd. is a manufacturer located in Changzhou, Jiangsu and near Shanghai with good location, convenient transportation and complement resources.We have our own factory and have advanced full automatic equipment to ensure the quality of all products. It strictly follows European & American Design and Use Standard and adopts an advanced management system and strict quality control. Our company has specialized in plasma welding and cutting machineparts for many years. Our main products include plasma cutting torch head and replacement parts such as plasma electrode, plasma nozzle and so on. We cooperate with manyfamous brands from different countries. Weicheng welding and cutting equipment manufacturing co., LTD specializes in the production and sales of Thermal Dynamics electrode nozzles,Hyperther 1250 electrode nozzles, Hyperther 65A/85A electrode nozzles, Hyperther 85-65, powermax1250 and other welding and cutting accessories. The company has exquisite skills, perfect quality management system. The company's main product brands are Hyperther, Thermal Dynamics, Trafimet, kjellberg, and so on, the products have plasma electrodes, plasma nozzles, plasma cutting torch,plasma protective cover,plasma shielding cover, domestic plasma cutting machine accessories. Widely used in shipbuilding, steel structure, elevator plant, heavy industry equipment, petrochemical and other industries, in the same industry are in a leading position. In recent years, the customers we have worked with have given a lot of good feedback and evaluation.
About our production equipment
We have multiple production lines and professional equipment such as vacuum plasma processing machines, plasma surface treatment machines, plasma cleaning machines, and plasma glue removers.
We can produce a large number of consumables such as plasma nozzles and plasma electrodes to improve product performance and quality.
Feel free to inquire us for help if you have any questions.
https://weicheng666.en.made-in-china.com/contact-info.html
Certifications
Packaging & Shipping
FAQ
Q1: Can I have a sample for testing?A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.Q2: Can I add my logo on the boxes/cartons?A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.Q3: What are the benefits of being a distributor?A: Special discount Marketing protection.Q4: How can you control the quality of products?A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quotingor installation process, as well as aftermarket support.Q5: Can we mix items in full container?A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
