Paper Bag /Kraft Paper /Corrugated Paper Making Machine

Product Description

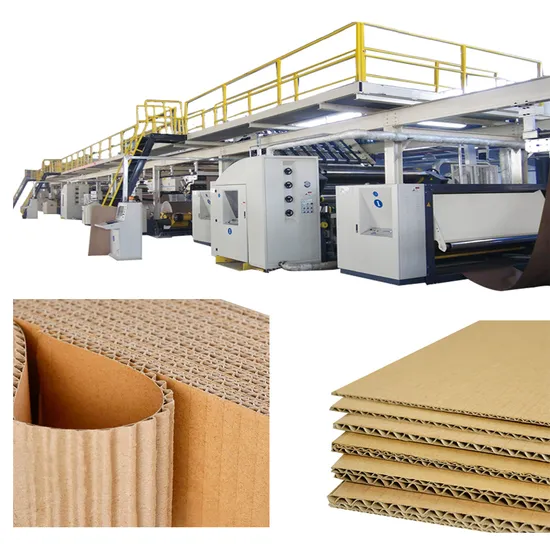

Paper Bag /Kraft Paper /Corrugated Paper Making Machine
1.Buying Guide:
In order to recommend proper machine and make detailed technical proposal and exact offer for you as soon as possible,please help to confirm the following technical parameters?
1.What kind of paper do you want to produce?
Kraft paper,corrugated medium paper, gray paper board or test liner Craft paper?
2.What kind of raw material you will use?
(1) 100% waste carton paper (OCC)?
(2) waste craft paper+virgin pulp?
(3) wheat straw, bamboo, wood, bagasse, reed?

3.How many tons per day do you want to produce (in 24hours)?
(4).Do you have requirement about paper width of jumbo roll?
(5).What is the output paper gram weight (thickness)?
2.Brief Introduction
We mainly supply the full production line including
1. Pulp preparation system.
2. Pulp approaching system.
3. Paper making machine.
4. Related auxiliary like size press, coating machine, slitter and rewinder etc.
The width range: 1600, 1760, 1880, 2400, 2850, 3200, 4400 up to 6000mm.
We supply full plant design with the machine and good service after sales.
3.Technical Parameters

Raw material	Recycled paper(newspaper, used box)
Output paper	Corrugating paper
Output paper weight	110-240G/M2
Net paper Width	1600mm
Capacity	10T/D
Width of cylinder mould	1950mm
Rail gauge	2400mm
Drive way	AC inverter speed, section drive; Paper Machine Manufacturer

Stainless steel cylinder mold	Extract the pulp fiber to felt
Alloy dyer cylinder	Dry the wet paper
Exhaust hood of dryer cylinder	To cover the dryer and collect the hot & moist air
Φ600 Axial-flow ventilator	To ventilate and pull out the hot & moist air in the exhaust hood
Roots vacuum pump	To provide the vacuum force for the suction box
Vacuum suction box	To absorb the water in the wet paper
Air compressor	To provide the compressed air for the pneumatic device
Frequency conversion controlling cabinet	To control the running speed of the machine
3m3 High concentration hydra-pulper	Break the recycle paper into pulp
1.8m2 High frequency vibrating screen	To separate and remove the small impurity in the pulp
Φ700mm impeller	To stir the pulp and make sure the pulp and water mixed well
0.5m2 pressure screen (Slotted screen)	To make the pulp more finer
35m3 Bleacher (include drive part)	To whiten the pulp through bleaching
Φ330mm pulp refiner	To make the pulp much finer and smoothe
Low concentration sand remover	To remove the sand and impurity in the water and pulp
Pulp pump	To provide the pulp for the needed machine
Electrical operation cabinet	To control the machines run or stop
1T Boiler (burning coal )	To provide the hot steam for the dryers

4.Raw Material
5.Why choose us?
1. professional engineer team with 30 years experience;
2. we can supply turn-key solution without any trouble;
3. we have strict quality control system and ensure there is no unqualified product;
4. professional installation technician and clear technical training for your workers;
5. strict recalling system: if any problem of machine, we will recall it and change a new one for free.
6.Company Profile
Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements. The main series of the products are tissue paper machine; kraft paper/testliner / fluting paper, machine writing paper machine and special paper machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam, Egypt, Bangladesh, Malaysia, Pakistan, Iran and other countries.
7.Packing & Delivery
Kraft Paper Making Machine Fixed all the movable parts with plastic films.
Polystyrene foam plate wrapped around.
Wrapped with tight plastic films several circles.
Fixed machine on the fumigated plywood pallet with iron wire.
Wrapped with wooden board around and nailed on.
8.FAQ
*(1). What kind of paper machine your factory produce?
Our factory mainly produce flowing machine:
A. Kraft paper machine which can produce carton box paper, corrugated paper, craft paper, testliner paper, carton board paper etc.
B. Culture paper machine which can produce white paper jumbo roll, include A4, A3 paper, copy paper, printing paper, newspaper, offset paper etc.
C. Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
D. Paper processing machine. the jumbo roll paper can be processed all kinds of paper, such as , A4, A3paper, handkerchief paper, towel paper and kitchen using paper
*(2). Can you make paper mill design for us?
Yes, we have a technician team of 116 engineers and 12 experts with more than 20years experience.
*(3). How about your machine quality, we are worry about the quality?
HY is a mature brand in china, more than 30 years manufacuturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System, and can match all the CE standard or more strict standard. our paper machine is running well in more than 20 countries. we are gold supplier on ****** already 5 years.
*(4). What should I have to know if I want to get the quotation?
a. What kind of raw material you will use(main important)
b. The capacity you want produce per day(main important)
c. The paper weight you require.
d. The paper width you require.
*(5). Your machine price is high, is there any discount?
We always provide high quality paper machines, we are paying more attention on oversea market, because of communication time after sales, and also it need very long time to send new parts. our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines. anyhow, when we will negotiate the price with each other during our meeting in factory, and get a good satisfaction.
*(6). Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have 116 technical installation engineer team, they can train and teach your worker to operate paper machine, but you should pay them salary.
