Dairy Farm Animal Husbandary Agriculture Machinery Milk Hall Backflush Valve

Product Description

Product Introduction
Flush valve:Connected with flushing pipeline (PE315), pneumatic quick release type, each flush valve is equipped with a pneumatic airbag, which can quickly open or close the flush valve.During flush, the airbag deflates, the valve open, and flushing begin. After flush, the airbag inflates, the valve close.
When no flush,the top cover plate is flat with ground, and the surface of the top cover plate is anti slip, prevent cows from slipping.
Air source: from the air pump of the buyer.
Composition: flush valve, top cover plate, cover plate fixing bolts
Flush valve: over-all hot-dip galvanized, inner diameter: 210mm, outer diameter: 380mm, thickness:15mm
Cover plate: 4.75mm thick hot-dip galvanized steel plate, 800x800, connected by hinge
Cover plate fixing bolt: SUS304 countersunk hexagonal bolt

Component Name	attribute	value
gasbag	diameter	189mm
	Minimum height	140mm
	Height after inflation	160mm
	Capable of withstanding pressure	3000kg
	texture of material	Natural rubber
Airbag frame	texture of material	Hot dip galvanizing
	Specifications	380mm x 380mm x 385 mm
	Inlet diameter	250mm
Cover plate specifications	Specifications	800mm x 800 mm x6mm
	workmanship	galvanized corrugated sheets
Overall components	weight	45kg
	service life	More than 10 years

Assembling drawing as below:
Water pipe and air pipe all pre embeded under ground,less damage will be caused to the pipes;
If there is any problem with the flush valve,just open the top cover plate for the checking or repairs;
More than 10 years, dairy farm with our flush valve had no problems

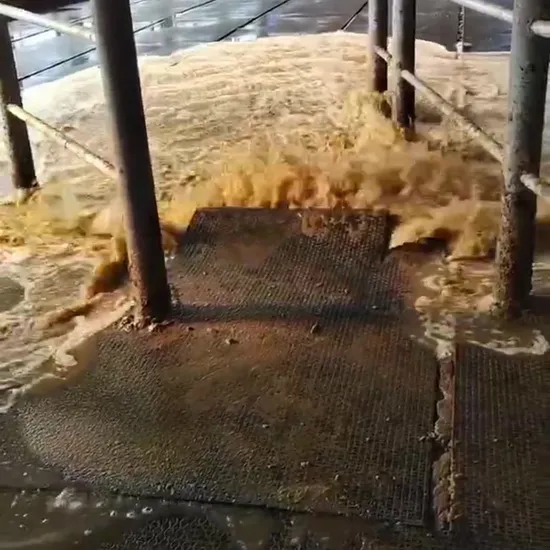

Application
