SMD Aluminum Electrolytic Capacitors 105c in Tape/Reel

Product Description

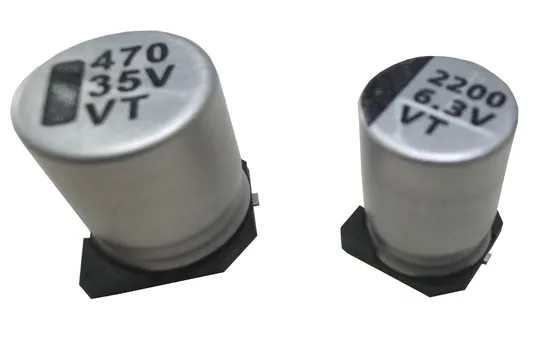

Chip Aluminum Electrolytic Capacitor (105C)
SMD Aluminum Electrolytic Capacitor
Standard chip Aluminum Electrolytic CapacitorDesigned for surface mounting on density circuit board
Emboss carrier tape packing system is available for automatic insertion.
Lead-free reflow soldering is available subject to customers, request.
Specifications
Performance Characteristics
Operating Temperature Range -40C to +85C
Voltage Range 4 to 100V
Capacitance Range 0.1uF to 10000uF
Capacitance Tolerance +/-20%.

Standard size & Maximum permissible ripple current
WV		35		63		100
		1V		1J		2A
Cap.(μF)		Case Size	Ripple Current	Case Size	Ripple Current	Case Size	Ripple Current
0.1	0R1	-	-	4×5.4	1	-	-
0.22	R22	-	-	4×5.4	2.3	-	-
0.33	R33	-	-	4×5.4	3.5	-	-
0.47	R47	-	-	4×5.4	5	-	-
1	10	-	-	4×5.4	10	4×5.4	10
1.5	1R5	-	-	4×5.4	12	6.3×5.4	15
2.2	2R2	-	-	4×5.4	15	6.3×5.4	20
3.3	3R3	4×5.4	18	5×5.4	20	6.3×7.7	45
						(6.3×5.4)	-28
						(8×6.2)	-50
4.7	4R7	4×5.4	20	6.3×5.4	30	6.3×7.7	50
				(5×5.4)	-23	(6.3×5.4)	-30
				-	-	(8×6.2)	-50
10	100	5×5.4	30	6.3×7.7	55	8×10.5	110
		(4×5.4)	-20	(6.3×5.4)	-34	(6.3×7.7)	-50
		-	-	-	-	(8×6.2)	-50
22	220	6.3×5.4	54	8×10.5	140	10×10.5	180
				(6.3×7.7)	-70	(8×10.5)	-120
				(8×6.2)	-35	-	-
33	330	6.3×5.4	60	8×10.5	160	10×10.5	190
		(8×6.2)	-130	(6.3×7.7)	-85
47	470	6.3×5.4	70	10×10.5	230	12.5×13.5	330
		(8×6.2)	-165	(8×10.5)	-170	(10×13.5) (10×10.5)	-220
		-	-	-	-	-	-200
56	560	6.3×7.7	80	10×10.5	250	-	-
68	680	6.3×7.7	110	10×10.5	260	12.5×13.5	380
						(10×13.5)	-250
100	101	8×10.5	175	12.5×13.5	380	12.5×13.5	440
		(6.3×7.7)	-120	(10×13.5)	-290
		-	-	(10×10.5)	-280
150	151	8×10.5	220	10×13.5	310	-	-
220	221	10×10.5	310	12.5×13.5	580	-	-
		(8×10.5)	-270	(10×13.5)	-330	16×16.5	700
330	331	10×10.5	350	16×16.5	820	-	-
				(12.5×16)	-720	-	-
470	471	12.5×13.5	600	16×16.5	950	-	-
		(10×13.5)	-530			-	-
		(10×10.5)	-400			-	-
680	681	12.5×13.5	750	-	-	-	-
		(10×13.5)	-560	-	-	-	-
1000	102	16×16.5	1100	-	-	-	-
		(12.5×16)	-800	-	-	-	-
Ripple Current (mA rms) at 85ºC 120Hz

Product Overviews
We currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors.
Company Information
Elecsound is a manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.
Certificates
Packaging & Shipping
FAQ
1: How long is your lead time?
It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.

2: What is your terms of payment ?
For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than
10000USD, 30% T/T in advance , balance fully paid before shipment.

3. Do you have any MOQ limit for an order?
Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

4: How to proceed an order?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.

5: Do you accept online orders?
Sure!! We prefer to fulfil orders under Trade Assurance system, since both parties will be protected.

6: Do you provide samples? is it free or extra?
Yes, normally we could offer samples with free charge but do not pay the shipping freight.

7: How do you guarantee my goods right?
Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

8: Is it OK to print my logo on the packing?
Of course, customized packing accepted!! But it may bring some cost, it depends on the qty, if small qty then we don't accept.
