DTSC2000 Automatic Door Electric Telescopic Door Opener for Commercial Sliding Glass

Product Description

Doortec Dtsc2000 automatic telescopic sliding door operator Product features:

Microprocessor control technology and advanced mechanical manufacture.
Self-learning when power on, this function is selectable by user.
Manual adjustment ,easy to adjust .
Opening and closing smoothly ,low noise.
Brushless DC motor, long working life and low noise ( less then 40dp).
Inter-lock:support multiple access control systems .Bounce after meeting resistance when close or open .
Humanized control function for electronic lock.
Technical features :

Telescopic sliding door is good solution for 2 different situations .One is narrow entrances with wide opening space,another is big door entrance .
It can be installed if there is a space just a half or whole door's width ,because there can be installed two-sliding doors in one door space .
Two doors are designed at 2 to 1 speed at the same time.It helps to do better operation and time savings .

Technical specifications:

Specifications	Telescopic door DTSC2000
Door leaf mode	Sing-opening	Double-opening
Door leaf weight	Max 2*150kg	Max 4*120kg
Door leaf width	DW=500-1500mm	DW=500-1500mm
Voltage	AC 90-240V,50Hz-60Hz
Opening speed	10-55cm/s(Adjustable)
Closing speed	10-55cm/s(Adjustable)
Opening time	0-20s(Adjustable)
Manual open force	<40N	<50N

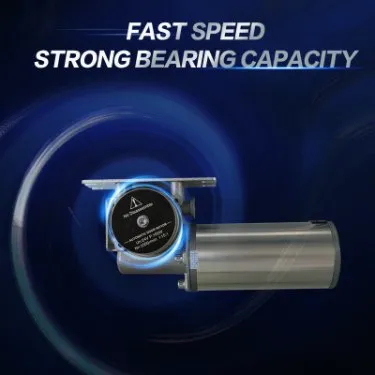

Motor	DC24V ,100W 2300rpm brushless DC motor
Operating temperature	-20ºC~+60ºC
