Hot Sale Factory Price 1/2/4 Cores Fibers Flat Indoor All Dielectric FRP FTTH Drop Fiber Optic Cable (GJXFH)

Product Description

SHG 1/2/4 Cores Fibers Flat Indoor All Dielectric FRP/KFRP FTTH Fiber Optic Cable (GJXFH)

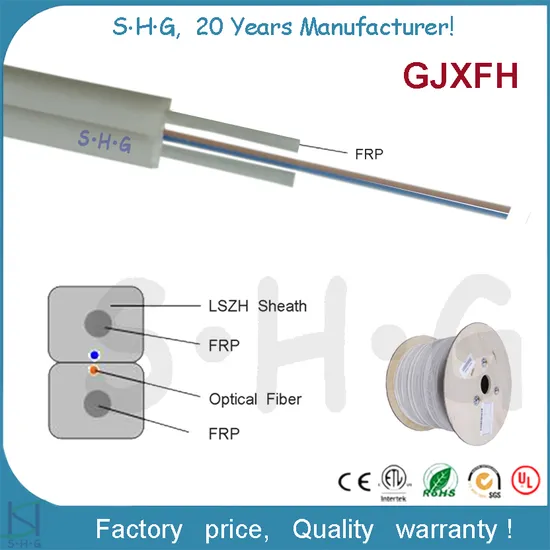

flat Butterfly indoor FTTH Fiber Optic Cable, use selected top brand(Corning, YOFC, Fiberhome...) fiber, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP) are placed at the two sides. Then the cable is completed with a LSZH sheath, UV & Flame retardant.
Features
1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3) Simple structure, light weight and high practicability;
4) Novel flute design, easily strip and splice, simplify the installation and maintenance;
5) Low smoke, zero halogen and flame retardant sheath.
Application Most be used in access network, customer premises network, distribution network. Excellent physical properities allow it can be Construction
> Indoor : without messenger type, FRP/KFRP wire, white or black upon requirement;

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0± 0.2)× (3.0± 0.2)	8	30/60	300/1000	15/30
2	(2.0± 0.2)× (3.4± 0.2)	8.5	30/60	300/1000	15/30
1	(2.0± 0.2)× (3.8± 0.2)	9	30/60	300/1000	15/30
4	(2.0± 0.2)× (4.0± 0.2)	10	30/60	300/1000	15/30

Packaging & Shipping Package
> 1 or 2km/wooden reel, then in pallet.
> 500m reel, or pull box, or other requirement upon request.
Special packing acceptable , upon customers requirements! Company Profile Workshop view
Certifications Certificates
ISO9001:2008, CE, RoHS, REACH Our Advantages Why Choose us
