Handhold Mini Small Fiber Laser Marking Machine for Metal Stainless Steel

Product Description

Product Description
Feature:
1: Laser protection cover
2: Touch screen protection cover
3: Hidden field lens
4:Battery component

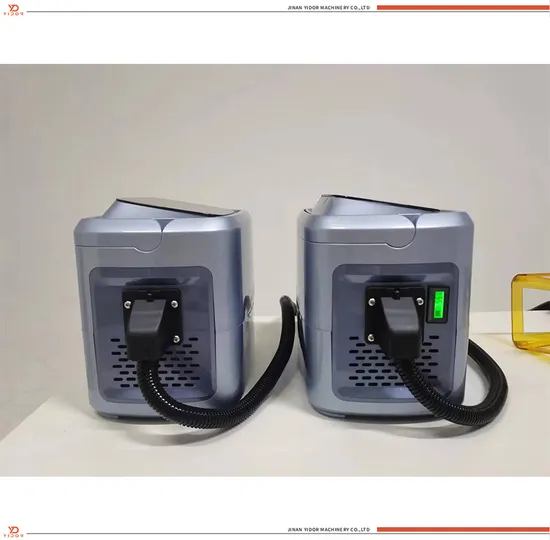

Detailed Photos
Product Parameters

No	Model	YDF-H
1	Laser power	20w/30W Maxphotonics
2	Marking area	100*100mm
3	Laser weave length	1064nm
4	Frequency of pulse	20-80KHZ
5	Beam quality	M²:1.5
6	Marking speed	7000-12000mm/s
7	Marking depth	0.01-1mm
8	Repetition Precision	0.01mm
9	Minimum Line Width	0.017mm
10	Minimum Character	0.2mm
11	Cooling mode	Air cooling
12	Positioning Way	Red light
13	Laser lifetime	More than 100000 hours
14	Control software	JCZ EZCAD 2.12 Professional fiber laser marking software
15	Support format	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
16	Control board	JCZ control board
17	Operation voltage	AC 220V±10%,50/AC 110V±10% 60HZ
18	Gross power consumption	≤500W
19	Support windows	Windows XP,7,8,10
20	Marking content	Text,pattern,date,bar code,QR code and ect
21	Material processed	all metal material and part of non-metal material,such as hard plastic
22	Connection	USB cable for connection, Flash drive with software and English manuals.
23	Operation temperature	5ºC-40ºC
24	Relative moisture	≤90%
25	Certificate	CE,FDA,ISO
26	Warranty	2 years
27	Operation	English operation manual
28		Online video teaching

Sample pictures
Applicable Industries:
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical
appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks,
jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating
materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and
other materials.
