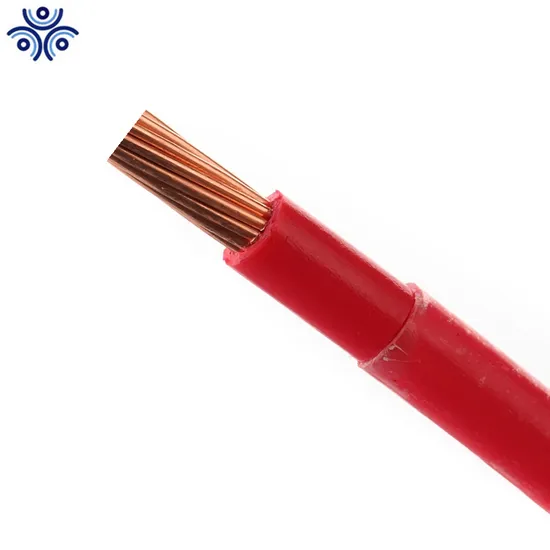

600V UL83 Certificated Electric ABC PVC Copper Thhn Thwn Thwn-2 Nylon Building Wire Thermoplastic Insulated Household Electrical Power RoHS XLPE Cable Stranded

Product Description

UL Certificated Electric THHN Cable Wire Applications: THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
When used as Type THHN, the conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, the conductor is suitable for use at temperatures not to exceed 90°C in dry locations, 75°C in wet locations, or 75°C when exposed to oil or coolant.
When used as type THWN-2, the conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as an appliance wiring material. The voltage rating for all applications is 600 volts.
Specifications: THHN or THWN-2 comply with: ASTM - B3, B8 (7,19, 37, 61 Strands), B 787 (19 Wire Combination Unilay Strand) Technical Compliance UL 83 - Thermoplastic-Insulated Wires and Cables CSA C22.2 No. 75-03 UL 1063 (MTW) - Machine-Tool Wires and Cables (stranded cables only) UL 758 (AWM) ICEA S-95-658/NEMA WC 70 Cable Construction: Conductor: Soft annealed bare copper, Class B stranding per ASTM B8 Insulation: Tough, heat and moisture-resistant Polyvinyl chloride (PVC) insulation over which a nylon jacket is applied Color: option For more information, please contact Hebei Huatong Wires & Cables Group Co., Ltd.
Cable Parameter

AWG OR KCMIL	STRAND	NOMINAL INSULATION THICKNESS INCH/MM		NOMINAL JACKET THICKNESS INCH/MM		NOMINAL OVERALL DIAMETER INCH/MM		CABLE WEIGHT LBS/KFT KG/KM
14	1	0.015	0.38	0.004	0.10	0.11	2.79	15	22
12	1	0.015	0.38	0.004	0.10	0.12	3.05	23	34
10	1	0.020	0.51	0.004	0.10	0.15	3.81	37	54
14	19	0.015	0.38	0.004	0.10	0.11	2.79	16	24
12	19	0.015	0.38	0.004	0.10	0.13	3.30	24	36
10	19	0.020	0.51	0.004	0.10	0.17	4.32	39	58
8	19	0.030	0.76	0.005	0.13	0.22	5.59	63	94
6	19	0.030	0.76	0.005	0.13	0.26	6.60	98	145
4	19	0.040	1.01	0.006	0.15	0.33	8.38	157	234
3	19	0.040	1.01	0.006	0.15	0.36	9.14	193	287
2	19	0.040	1.01	0.006	0.15	0.39	9.91	240	357
1	19	0.050	1.27	0.007	0.18	0.43	10.92	300	446
1/0	19	0.050	1.27	0.007	0.18	0.47	11.94	376	560
2/0	19	0.050	1.27	0.007	0.18	0.52	13.21	467	695
3/0	19	0.050	1.27	0.007	0.18	0.57	14.48	581	864
4/0	19	0.050	1.27	0.007	0.18	0.64	16.26	724	1077
250	37	0.060	1.52	0.008	0.20	0.69	17.53	855	1272
300	37	0.060	1.52	0.008	0.20	0.76	19.30	1022	1521
350	37	0.060	1.52	0.008	0.20	0.79	20.07	1191	1772
400	37	0.060	1.52	0.008	0.20	0.85	21.59	1345	2001
500	37	0.060	1.52	0.008	0.20	0.94	23.88	1668	2482
600	61	0.070	1.78	0.009	0.23	1.10	27.94	1994	2967
750	61	0.070	1.78	0.009	0.23	1.16	29.46	2465	3668
