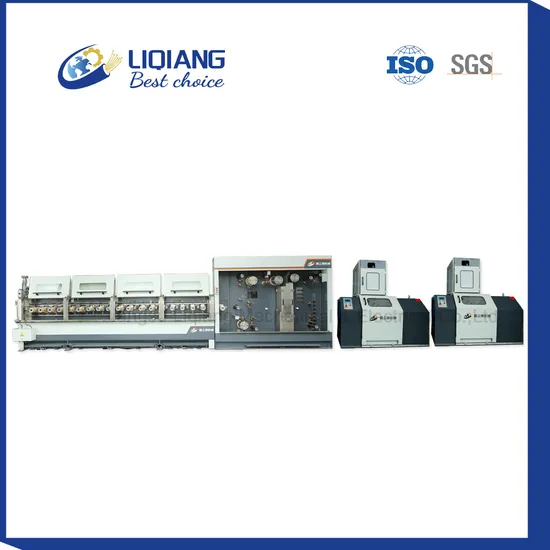

Liqiang- Multi 14 Wires Drawing Machine with Annealer Online

Product Description

Product Description

Product Parameters
Inlet diameter	14* MaxΦ2.6mm (annealed wire 250N/mm2)
Outlet diameter	14*Φ0.25mm ~ 0.64mm
Number of produced wires	14× copper bare
Max. designed speed	1800m/min
Drawing passes	Max.19
Drawing rings	120mm with 14 grooves
Drawing ring meterial	zirconia
Drawing dies	φ max. 28mm x max. 12 mm thickness
Bobbin	PND630 ( Or according to customer requirements)
Operation direction	from left to right
Noise level	< 85 dbA (Except for main motor )
Colour	According to customer requirements

Main components of machine
Pay-off for 14 wires(Without pay off basket)	1 set
14-line wire drawing machine	1 set
Online annealer	1 set
Take-up machine	2 sets
Cooling system of annealer shaft	1 set
Electrical control cabinet	1 set
Emulsion supply system for drawing	1 set
Emulsion supply system for annealing	1 set
Connection cable and copper bar	1 set

Company Profile
Jiangsu Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of "quality wins market,integrity makes for brand".We make each component with all our mind and energy and to meet multiple requirements all from clients'interests.We hope to create maximum value for the community as well as for clients.
Certifications
Exhibition
Packaging & Shipping
FAQ
Q: Are you a manufacturer or trade company?A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime.Q:Where is your factory located?A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine?A: More than 20 years. We have our own technology develop department and testing department.Q: Can you send your engineer to my country for machine installation, worker training?A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: 12 months since the date of dispatching from our factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. We will arrange all the customs clearances in advance for you.If you are interested in our machines,
