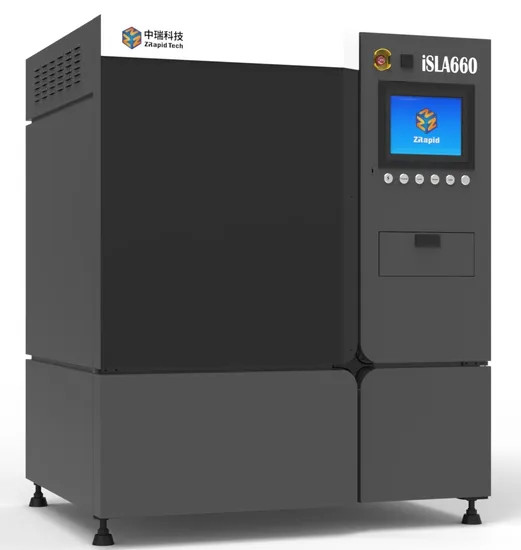

ZRapid iSLA660 SLA 3D Printer for Prototype

Product Description

Product Description ZRapid iSLA660 SLA 3D Printer for Prototype
Features: •Fine detail and smooth surface finishing •Print intricate details with accuracy achievable up to 0.05mm •Convenient and user- friendly for printing concept models, functional prototypes and end-products •Two options of quick printing mode and precision mode available •Dynamic focus and super fast scanning style •large surface intelligent partitioning scanning •Granite integrated Z axis lifting platform •Intelligent positioning and vacuum adsorption recoater •Damaged parts can be deleted immediately
Detailed Photos
Product Parameters Technology: Stereolithography, additive layer manufacturing
Material Class: Photo reactive resin

LASER SYSTEM
Type	Diode-pumped solid-state laser Nd:YVO4
Wavelength	354.7nm
Laser power	3W
RECOATING SYSTEM
Process	Intelligent reduced vacuum press recoater
Normal build layer thickness	0.1mm
Quick build layer thickness	0.125mm
Precise build layer thickness	0.075mm
Special build layer thickness	0.05-0.15mm
OPTICAL & SCANNING
Beam (diameterΦ)	0.10-0.50mm
Focus style	Galvanometer scanning
Part drawing speed	Recommended 6.0m/s
Beam jump speed	Recommended 10.0m/s
Reference build weight	50-180g/h
ELEVATOR
Platform	Marble platform
Elevator motor resolution	±0.0005mm
Max build weight	100kg
RESIN VAT
Volume	Approx. 202.0L (230kg)
Build envelope:	600mm(X)*600mm(Y)*400mm(Y)
SOFTWARE
Operating system	Windows 7, Ethernet, TCP/IP IEEE802.3
Control software	iSLA (ZERO 5.0) build software
Date Preparation Software	3dLayer
Data interface	CLI file, SLC file, STL file
INSTALLATION CONDITION
Power	200-240VAC 50/60Hz, single phase, 5/10Amps
Ambient temperature	20-26ºC
Relative humidity	Less than 40%, non-condensing
Size	1.60m(W)×1.30m(D)×1.90m(H)
Weight	Approx. 1000kg
WARRANTY
Laser	5000 hours or 12months (whichever comes first)
Main machine	One (1) year from installation date

Applications
Our Advantages •High market share in China, more than 3000 sets industrial 3D printers installed in China and all over the world.
•Have been researched 3D printing technology since year 1998.
•One-stop solution for machine, software and materials.
•Rich product range including SLA, SLM, SLS and ceramic machines.
•World Well-known brands for key components to guarantee the machine quality and stability.
•English and fast response online support guys.
