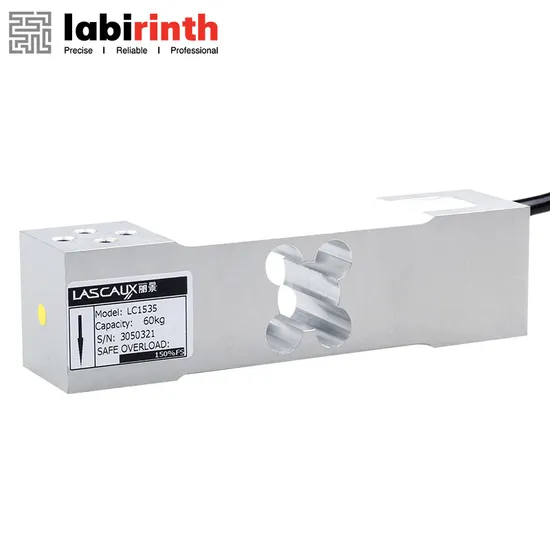

60kg-300kg Single Point Load Cell for Automatic Sorting Scale LC1535

Product Description

High Precision Automatic Sorting Scale 60kg-300kg Aluminum Load Cell for Large GoodsProduct Description LC1535 Single Point Load Cell Description: 1. Capacities (kg): 60 to 300
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 400mm*400mm

Product specifications
Specification	Value
Rated load	60,100,150,200,250,300kg
Rated output	2.0±0.2mV/V
Zero balance	±1%R.O.
Comprehensive Error	±0.02%R.O.
Zero output	≤±5%R.O.
Repeatability	≤±0.02%R.O.
Creep(30 minutes)	≤±0.02 %R.O
Normal operating temperature range	-10~+40 ºC
Allowable operating temperature range	-20~+70ºC
Effect of temperature on sensitivity	≤±0.02%R.O./10ºC
Effect of temperature on zero point	≤±0.02%R.O./10ºC
Recommended excitation voltage	5-12 VDC
Input impedance	410±10 Ω
Output impedance	350±3Ω
Insulation Resistance	≥5000(50VDC)MΩ
Safe overload	150%R.C.
limited overload	200%R.C.
Material	Aluminum
Protection Class	IP65
Platform size	400*400mm
Tightening torque	10N•m

Applications Applications:Be suitable for the fields of Packaging Scales, Retail Scales, Counting Scales, Electronic Scales, Low profile platform scales,Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control
