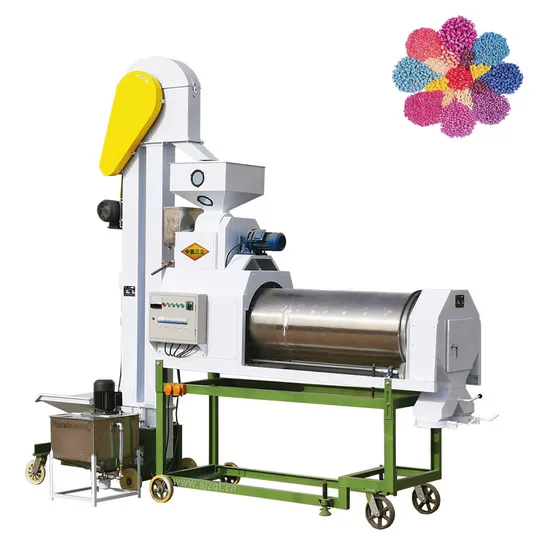

5byx-5 Chemical Seed Treater Continuous Type High Effection Coating Treatment

Product Description

What's this machine can do?
The seed dressing agent is evenly wrapped on the seed surface to protect the seed from insects and improve the germination rate of the seed.
The 5BYX-5 seed coating machine is suitable for processing various seeds. Especially for paddy, maize, wheat, beans, the effect is better.
Structure Diagram
This machine uses rotary quantitative feeding device, continuous gives the material with continuous injecting quantitative seed dressing agents liquid, which is controlled by a flow controller, so it give an accurately proportion of seed and seed dressing agent liquid, and easy for adjustment. According with high speed centrifugal disc (for atomizing the seed dressing agent liquid) and large stainless steel cylinder(for mixing), give a good coating effect.
This machine has many advantages, such as good working conditions, good air tightness, safety, reliable, very low seed damage rate, electronic control system for overheating protection. It also can with heating medicine tank for high and cold region, so the user no need worry about frozen of seeed dressing agent liquid.
Detailed Photos
Product Advantages
★ Surface spray molding or baking paint treatment, beautiful and durable.
★ Continuous quantitative seed and seed dressing agent feeding control.
★ High speed centrifugal disc atomization technology.
★ Extended stainless steel mixed drum, stainless steel seed dressing pump.
★ Drum stirring mixing with low crushing rate, suitable for coating dicotyledonous seeds.
★ The electrical control system has automatic protection functions for overheating, short circuit, and power outage.
★ Closed work can minimize pollution to personnel and the environment.
★ For high and cold areas, a heating seed dressing agents pump is specially designed, so there is no need to worry about seed dressing agents condensation during winter operations.
Product Parameters

Max-feeding capacity	Wheat seed	5000 Kg/h
	Maize/Cotton seed	4500 Kg/h
	Rice seed	3000 Kg/h
Size( L×W×H )		2504×988×2434 mm
Liquid pump size (L×W×H)		540×490×862 mm
Power Source		380V / 50Hz / 3-Phase
The total power		4 kW (Include bucket elevator)
Seed dressing agent-Seed proportional range		1:20~1:120
Coating uniformity degree		≥ 98%
Broken rate		≤ 0.1%
Cleaning machine rate		≥ 95%
Coating method		High speed centrifugal atomizing and mixing
Lifting way		Bucket elevator

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
FAQ
Why do seeds need to be coated?
Seed coating is a deep processing measure for seeds. Due to the different effective ingredients of seed coating agents used for coating, their effects also vary. In summary, seed coating mainly has the following functions:
★ It can effectively prevent and control underground and seedling pests and diseases.
★ It can enhance the stress resistance of crops, such as drought resistance, cold resistance, and salt alkali resistance.
★ Can promote crop growth.
★ The combination of seed technology and plant protection technology effectively reduces labor intensity and saves labor.
★ Reduce environmental pollution.
★ Increase crop yield.
