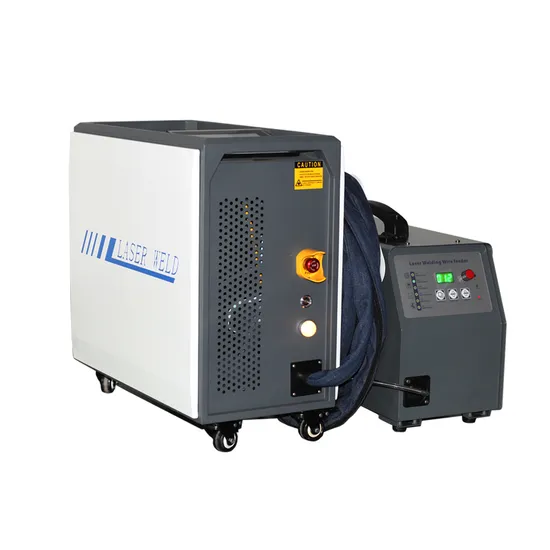

1500W Postable Handheld Air Cooling Laser Welding Machine for Welding Stainless Steel

Product Description

1500W mini type air-cooled handheld laser welding machine with MAX laser source
1500W LightWelder is quite fast and easier than traditional MIG & TIG Welding
1.Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of fiber handheld laser welder;
2.Up to 4X faster than TIG;
3.Easy to learn and operate with highest process consistency;
4.High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through;
5.Welding of dissimilar metal parts of different thicknesses;
6.Dramatically low heat input and minimized heat affected zone;
7.Minimal part setup and post-processing grinding or polishing;
8.Increased productivity with no need for machining or straightening deformed parts.
Laser Weld Gun / Laser Torch
1.It can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate, iron plate, aluminum plate and other metal materials;
2.Light weight, small size, ergonomic design and comfortable grip;
3.The operation is easy to get started, and the requirements for operators are extremely low;
4.Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing;
Strong anti-interference.
5.The new laser hand-held welding head adopts international standard three-color warning light, which conforms to EU safety production standards.

Number	Name	Technical parameter
1	Interiorinput Power	4.5KW
2	Output Power	1500W
3	Laser Wave Length	1064nm
4	Laser Source	MAX
5	Repeat Frequency Rate	1~10000KHZ
6	Welding Light Class	1~5mm
7	Capacity Control	10~100%
8	Welding Focal Length	F=120mm
9	Output Power Stability	≤3%
10	Language	China, America, Russia, West, Poland, Greece, South Korea, Japan (customizable)
11	Handheld Length	10M
12	Working Voltage	AC220V±10% 50HZ
13	Welding Stick	1.0/1.2/1.6 mm
14	Cooling-down Method	Air Cooling
15	Machine Size Weight	320*580*580mm 55KG
16	Size and Weight of Wire Feeder	520*260*450mm 17KG(Contains a 5 KG welding wire)
17	Package Size and Weight	740*510*1030mm 95KG

Welding Sample
