Complex Hammer Crusher for Limestone, Glass, Calcite Medium Hard Material Secondary & Third Crushing with Fine Aggregates Capacity 110 Tph (PCX-1212)

Product Description

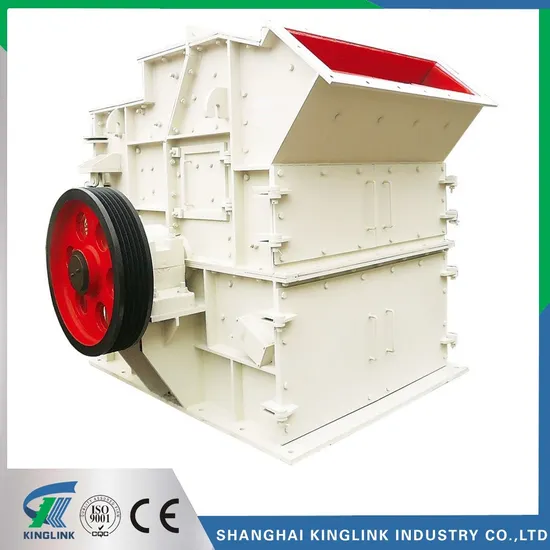

PCX Series High Efficient Hammer Crusher
Introduction of PCX series Super-Fineness Energy-Saving Crusher PCX series Super-Fineness Energy-Saving Crusher was developed and improved technology from Germany and China by KINGLINK. and the overall design has been further optimized.
This series feature of rational multi crushing chambers and novel double adjusting mechanism, which can ensure 85% of the discharged materials less than 3mm, and the uniformity of the product fineness can be controlled. Easy access for maintenance has made the hammers and screen bars replaced much easier.

Advantage and application of PCX Series Super-Fineness Energy-Saving Crusher All the wearing parts are made of new type of high chromium alloy materials with multiple elements so as to ensure the abrasive property and impact-resisting property of hammers and liner plates. This series of crushers also feature of stable operation, low dust and less power consumption which have prestigious advantages when comparing with conventional crushers. The PCX series have been widely used for crushing mid-hard materials such as limestone, cement clinker, iron ore, shale, dolomite, gypsum, pyrites and mineral slag in chemical, construction, mining, coal processing, sand making , refractory industries etc.
Features of PCX Series Super-Fineness Energy-Saving Crusher: 1. Super-fineness crushing capability: The new particle size adjusting mechanism guarantees 85% of the particles controlled within 3mm;
2. High-efficient and energy-saving: 40% power consumption reduced at equivalent output;
3. Extra long life: hammer heads are made of new type of high quality alloy materials with multiple elements and can be turned for use thus to prolong the service life by 4 times.
4. Great crushing ratio: incorporating primary, secondary crushing for clinkers, secondary and tertiary crushing for limestone into one step.
5. Easy Maintenance: Double inspection door is convenient for quick and changing hammer heads.
Main Technical Data of PCX Fine Crusher

Model	Feed Size (mm)	FinalSize (mm)	Capacity (t/h)		Power (kw)	Overall (mm)
			Lime-Ash	Limestone
PCX-0804	80	3	15-20	20-25	37	1395*1506*1390
PCX-0808	80	3	25-30	30-40	45	1395*1906*1390
PCX-0908	100	3	40-45	45-50	55	1754*1906*1659
PCX-0910	100	3	45-50	50-55	75	1754*2176*1659
PCX-1010	150	3-5	50-60	60-70	90	2138*2590*2021
PCX-1210	200	3-5	60-80	70-90	110	2524*2761*2325
PCX-1212	200	3-5	60-100	70-110	132	2524*2866*2325
PCX-1414	200	5-8	70-150	70-160	200	2550*3120*2670
PCX-1616	200	5-8	100-210	110-260	250	2922*3564*2900
PCX-1818	200	5-10	120-270	130-310	315	3121*3754*3150

Note: Specifications may change without further notice.
