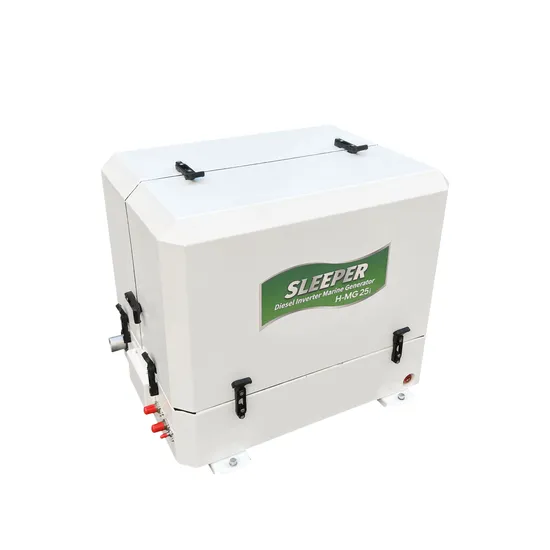

Marine Gen Set with Competitive Price, Super Quiet and Low Vibration, Optimized for Boat, Yacht Loading, EU and USA Newest Emission Standard
| US$6,100.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
H-MG25i
Type
Micro-Computer Control Automatic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Single Phase
Speed
2200-3000 Rpm
Conditions of Use
Marine
Usage
Common Units
Engine
Kubota/Yanmar
Transport Package
Wood Case
Specification
890*590*690mm
Trademark
SLEEPER
Origin
China
HS Code
85021100
Production Capacity
10000 Sets Per Year
Product Description
Product Description Super soundproof generator, Max Power:25 KVA230 VAC 50 Hz/120 VAC 60 HZ
• Convenient to connect to principle on-
board diesel fuel tank
• miniature size and light weight ,feasible to save precious pace of your vessel.
• Constantly solid electricity output for air
conditioning, water boiler, mini kitchen as well as sensitive electronic devices.
• Compatible with Sleeper inverter/charger (or
other brands)
• Eco-friendly emission standard - EPA Tier 4/ Stage V
Product Parameters SLEEPER H-MG6i Marine Generator Specification
| MAIN SPECIFICATIONS | |
| Model | H-MG25i |
| Nominal voltage(V) | 230 / 120 |
| Frequency(Hz) | 50 / 60 |
| Number of phases | 1 |
| Intermittent power(kVA/kW) | 25kVA |
| Continuous power(kVA/kW) | 20kW |
| Noise(dBa/7m) | 51 |
| Rpm range | 2400 - 3000 adjustable |
| Cooling system | Dual circuit freshwater cooling via heat exchanger |
| Harmonic distortion | ≤3% |
| Frequency stability | ±0.1% |
| Alternator technology | Permanent Magnet |
| Generator control | PMG Inverter |
| Inverter (with DDC local) | PMGi 25 |
| Control Panel | Digital Display Control(DDC local + DDC remote) |
| DIESEL ENGINE SPECIFICATIONS | |
| Engine model | Yanmar |
| Cylinder | 4 |
| Displacement(cc) | 2190 |
| Bore x stroke(mm) | 92 × 75 |
| Consumption(L/hr) | 1.5-8.5 |
| Start battery capacity | 12VDC / 120Ah |
| Starter battery charge method/ current | Handy charger 12 V /7A |
| Lubricant | At least CF |
| Oil capacity(L) | 7.4 |
| DIMENSIONS & WEIGHT | |
| Dimentions(L*W*H) | 890*590*690 mm |
| Cabinet weight | 275kg |
| PMG Inverter weight | 13 kg |
| Water inlet hose | Ø19mm |
| Exhaust Hose | Ø40mm |
| Fuel Hose | Ø 8mm |
| Siphon breaker | Ø19mm |
