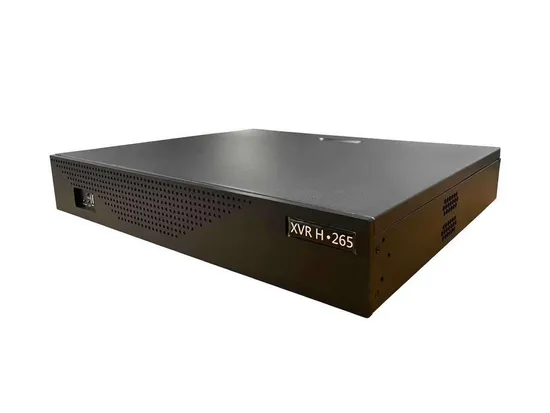

32 Channel Digital Video Recorder 32CH Ahd DVR Xvr CCTV Camera and DVR Security System

32 Channel Digital Video Recorder 32CH Ahd DVR Xvr CCTV Camera and DVR Security System

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SE-M5232XVR
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
32CH BNC Input, 4/8/16/32 Channel DVR
Audio Input/Output
4 Channel
Remote Control
Without Remote Control
Video Fil E Logging Mode
Motion Detection, Time Lapse Video
Audio
4CH Input, 1CH Output
Hard Disk Size
up to 8tb Each
HDD Supported
4X Hdds
BNC Camera Input
16CH 5MP 4MP 3MP 1080P Input
Interface
1CH HDMI, 1CH VGA, 2X USB
Compression
H.265, H.264
HDMI Resolution
1920X 1080
OEM, ODM
Yes, Support Software and Hardware Customised
Customized Logo
MOQ 30PCS
Customized Packaging
MOQ 200PCS
Transport Package
Paper Carton
Specification
480(L)* 382(W)*48(H )
Trademark
SECUMATE, OEM, ODM
Origin
Shenzhen, China
HS Code
8521909090
Production Capacity
20000 Pieces/Year

Product Description

32 Channel H.265 5MP/4MP/3MP/1080P Hybrid DVR
MODEL: SE-M5232XVR Display Resolution
Analog:5MP Lite:20fps/ 4MP Lite:30fps/ 3MP:18fps 1080P/720P/960H:30fps
IP:5MP/4MP/3MP/1080P/720P
Record resolution
Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H
IP:5MP/4MP/3MP/1080P/720P
Record speed
Analog:5MP Lite:12fps(each ch);
4MP Lite:15fps(each ch);
3MP:10fps(each ch);
1080P:15fps(each ch);
720P PAL:25fps(each ch)/NTSC:30fps(each ch);
IP:PAL:25fps(each ch)/NTSC:30fps(each ch)
Maximum output Brandwidth
96Mbps
Maximum decode performance
1080P:240fps
Recording Mode
Continuous/Manual/Motion detect
HDD interface
4SATA HDD, up to 32TB
Dimension(WxDxH)
378X326X66mm
Model SE-M5232XVR
Video Compression H.265/H.264
Video System NTSC/PAL
Operation System Linux(embedded)
Analog video-input /output 32CH inputs/VGA and HDMI output
IP Video Input 4CH
Composite Video Input up to 36ch (Analog video + IP video)
Audio input /output 8CH inputs/1CH output(RCA)
Display resolution Analog:5MP Lite:20fps/4MP Lite:30fps/3MP:18fps/1080P/720P/960H:30fps
IP:5MP/4MP/3MP/1080P/720P
feature single/Quad/Nine/Sixteen/S.E.Q.
Record resolution Analog: 5MP Lite/4MP Lite/3MP/1080P/720P/960H
IP:5MP/4MP/3MP/1080P/720P
speed Analog:5MP Lite:12fps(each ch);
4MP Lite:15fps(each ch);
3MP:10fps(each ch);
1080P:15fps(each ch);
720P PAL:25fps(each ch)/NTSC:30fps(each ch);
IP:PAL:25fps(each ch)/NTSC:30fps(each ch)
IP-Recording Bandwidth 16Mbps~96Mbps(default is 16Mbps, decrease one Analog channel can increase 4Mbps)
(Maximum input Bandwidth)
Maximum output Brandwidth 96Mbps
Maximum decode performance 1080P: 240fps
Recording Mode Continuous/Manual/Motion detect
Synchronous Playback 16CH
Network Type Lan, DHCP, and DDNS
HDD interface 4SATA HDD, up to 32TB
Multiplex Operation live display, record, playback, backup and network
USB 2xUSB(for mouse and backup/upgrade)
Sensor & Alarm I/O 16 inputs/1 output
PTZ Control yes (RS485)
Mobile Surveillance Support Mobile Phones based on iOS and Android operation system
VGA/HDMI 1024*768,1280*1024,1440*900,1920*1080,2560*1440(2K),3840*2160(4K)
Power Supply DC12V/2A
Dimension(WxDxH) 378X326X66mm
Working Temperature -10°C~+55°C
Working Humidity 10%~90%
