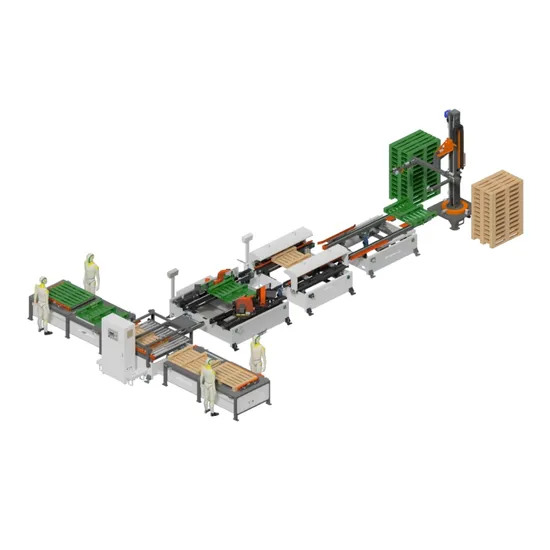

Saifan Manual Pallet Assembly Line for Woodworking Machinery

Product Description

Saifan Manual Pallet Assembly Line for Woodworking Machinery Product Description
Advantages:
1,Each set of nailing table with one positioning molds
if block pallet, change pallet need to change customized mold.
If stringer pallets with one mold in machine can change to other type or size, means no need extra mold.
2,Time to change mold 5-8 minutes.Convenient and flexible.
3,Both block pallets and stringer pallets can be produced.Multiple sets of molds can be customized.
4,Double nailing table can making different type pallet at the same time,automatic corner cutting,hot stamping and stacking.
5,High quality,perfect after-sales service,engineers design drawings,siemens touch screen and PLC, Schneider electric parts.
6,Design production lines according to customer needs, professional engineers design drawings. Product Parameters

Model	SF9030
Station Details	Manual nailing stations+turning stations+chain transition+stacking table
Pallet length (Change mold for making different size pallet)	750-1300mm
Pallet width (Change mold for making different size pallet)	750-1100mm
Pallet height (Change mold for making different size pallet)	120mm-150mm
Productivity	30-40 pallets/h
Machine space	8.5*8.3*3.3m
Total power	6.5kw
Brand of pneumatic components	AirTac
Servo drive+motor brand	Yaskawa
Touch screen+PLC	Siemens
Sensor+Probe	Pepperl-Fuchs+Schneider+Leuze electronic
Air pressure requirements	0.6-0.8mpa

Detailed Photos
Below 3 solutions for your choice
Solution 1) 1 nailing table line
Consist with 3 stations, nailing table + conveyor + stacker
Power 5kw
Productivity about 15-20 pallets/h
Space 8000mm*1440mm
Solution 2) 2 nailing tables line
Consist with 5 stations, 2 nailing tables +90° turner+ conveyor + stacker
Power 7.5kw
Productivity about 30-40 pallets/h
Space 7380mm*8030mm
Solution 3) 3 nailing tables line
Consist with 6 stations, 3 nailing tables +90° turner+ conveyor + stacker
Power 8kw
Productivity about 50-60 pallets/h
Space 12206mm*8030mm
Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine

Certifications
Packaging & Shipping
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
8.After Sales Service
1) Seller will send engineer (Chinese speaking, buyer prepare translator) to service in site, all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and insurance cost, hotel and eating responsible by buyer, and extra labor salary.
2) If travel abroad is impossible, then we will send you videos for installation and operation, and supply online guide from WeChat/WhatsApp, some of our customers work the machines properly through this way. We have English videos for almost every machine, videos about the installation steps, operation steps, maintenance steps, most our customer use the machine succeed base on our videos.
3) Warranty in 1 year since buyer receive the machine.
In warranty period seller will supply Free parts and online service exclude, Easy wearing parts (saw blade, cutters, motor belt, small electric components
4) Damage by wrong operation.
Out of warranty period seller supply paid parts, Lifelong responsibility.
And our Aftersales service team can supply free online support in 6 days per week, 10+ hours per day.
FAQ
1. Do you offer installation?Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1) Technical support by phone, email or WhatsApp/Skype around the clock.
2) Friendly English version manual and operation video.
3) Engineer available to service machinery overseas.
5. Can you customized the machine?
Our machines can be customized made according to buyers' request.
6. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine,roller coater, spraying machine, membrane press can be provided as well.
7. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian.etc.
