China CNC milling machine XK6032/XK6040 CNC horizontal milling machine

Product Description

China cnc milling machine XK6032/XK6040 CNC horizontal milling machine Product Description

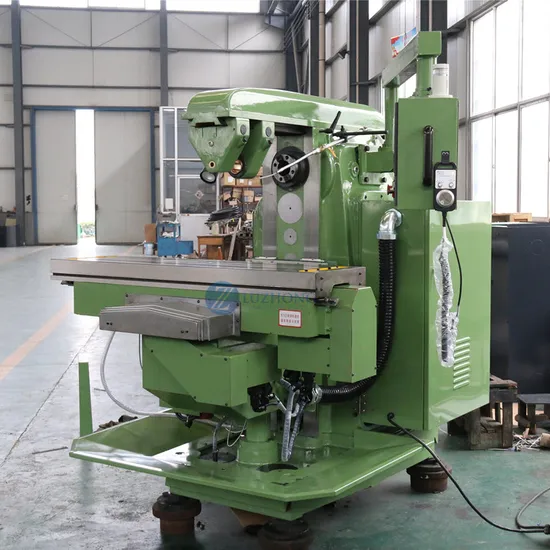

Detailed Photos
Product Parameters
The main performance characteristics:
1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work.
2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed. High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played.
3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake.
4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life.
5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers and machine tool, but also can be used as the multi machine tool management.
6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts and bearings have perfect lubrication device,At the same time an set indicator for Conduct regular inspection
7, Good reliability, economical and practical, the price function than good
Application:
1. Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type milling cutter, angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves.
2. If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a helical surface of special shape of parts,
3. Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry.
Product main technical specifications:

Specifications	Units	XK6032	XK6040
Table size	mm	1320x320	1700x400
Table travel (X.Y.Z)	mm	800x350x280	920x380x350
T-type slot(numbers / width /space)	mm	3-18-70	3-18-90
Max. load working table	kg	320	500
Distance from spindle axis to table	mm	20-370	30-410
Distance from column vertical guide way to the center of table	mm	225-505	275-625
Rapid feed speed(X.Y.Z)	mm/min	6000/3000/6000	6000/3000/6000
Feed speed (X.Y.Z)	mm/min	6-3200/3-1600/6-3200	6-3200/3-1600/6-3200
Spindle taper		ISO50(7:24)	ISO50(7:24)
Spindle speed range	rpm	30-1500(18 steps)	30-1500(18 steps)
Spindle motor power	KW	7.5	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12	12
Vertical feed motor torque (Z)	N. m	22	22
Max. spindle torque	N. m	1000	1000
Overall dimensions(Lx W x H)	mm	1929x2055x1960	2310x2200x2394
Machine weight	Kg	2800	4250

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
