High Quantity Disposable Syringe Making Machine/Plastic Injection Molding Machine

Product Description

Product Description

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	60	67	70
	Screw L/D Ratio	L/D	22.9	21	20.1
	Injection Volume	cm3	740	923	1008
	Shot Weight	g	674	840	917
	Injection Pressure	Mpa	213	171	157

Clamping Unit	Clamping Force	KN	3280
	Opening Stroke	mm	660
	Mould Thickness(Min-Max)	mm	250-660
	Space Between Tie-Bars	mm	660*660
	Ejector Force	KN	80
	Ejector Stroke	mm	170
General	Motor Power	KW	30
	Heater	KW	21
	Pump Pressure	Mpa	16
	Machine Dimension	m	6.8*1.7*2.6
	Machine Weight	T	9.8
	Mould Orientation Ring Diameter	mm	Φ160
	Nozzle Radius	mm	SR15

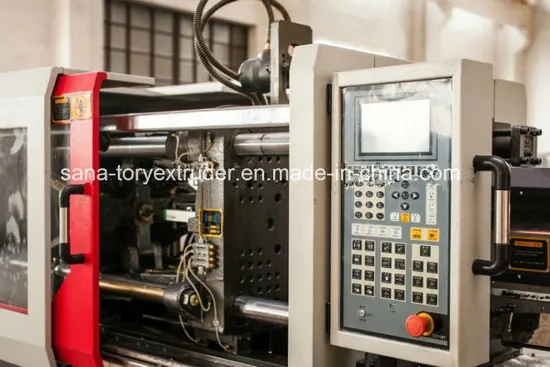

Detailed Photos
1.Save Power Consumption
Cooling phase, the motor does not need to work, power consumption is 0.
Compared with the traditional injection molding machine can save electricity <80%
2. Saving Water And Fuel
Compared with the traditional hydraulic power system of the hydraulic oil
consumption reduce
1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
3.Living longer 2~3 Double.
Machine Service Life Longer And Cleaner Working Environment
4.Improve the production efficiency
Quick Response And High Efficiency
Injection molding machine to achieve maximum output in 0.05 s
50 rpm can be up to 140 bar
High Repeat Precision, Save Raw Materials
Repeated injection precision can reach <=3%
Pressure Is Stable, Improve the Quality Of Molding
Pressure fluctuation quantity is less than + / - 0.5 bar
Application products
Company Profile
FAQ
1.Are you a manufacturer or Trade Company?

We are a professional vertical injection machinery manufacturer.

2.How to choose injection molding machines?
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine, and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
