Industrial Warehouse Storage Heavy Duty Selective Metal Vna Pallet Rack

Product Description

Industrial Warehouse Storage Heavy Duty Selective Metal Vna Pallet Rack

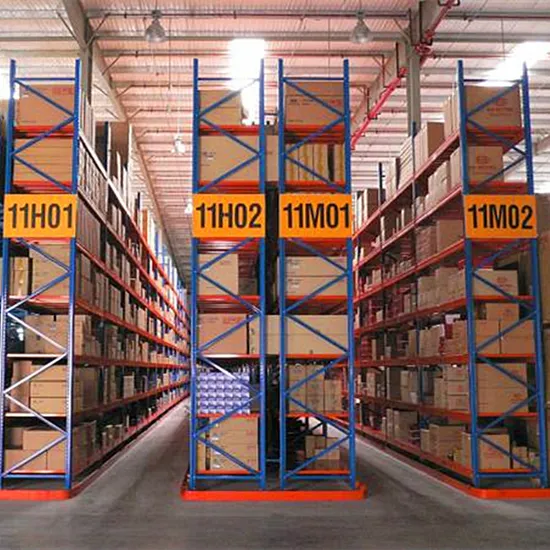

VNA Rack(Very Narrow Aisle Pallet Rack) is a kind of pallet rack. Difference lies in the bottom ground with guide rails. Material handling forklift is dedicated to 3-guide forklift or stacker. The width of Aisle is slightly larger than that of pallets, high density storage requirements can be achieved. At the same time, VNA covers all advantages of pallet racking with 100% optional capability. Forklift can load and unload any pallet.
Features:
1. Having large goods storage capacity, frequent loading and unloading of pallets and higher requirements of goods picking. 2. Having higher level in logistics efficiency. 3. Clear height of warehouse is more than 8 meters. 4. Forklift only used in the appointed warehouse and no extra tasks from outdoor. Please Provide Information for Quick Quotation
1. Pallet Size (Length*Width*Loading Height in mm).2. Layout or Dimension (Length*Width*Net Height in mm) of your warehouse.3. Rack Size (Length*Width*Depth in mm) if available or we shall design for you.4. How many bays and levels if available.5. Loading Capacity(kg) of each level or each pallet.
KAKU Uprights (t=1.8/2.0/2.3/2.5/3.0mm)
KAKU Beams
Technical Data for Pallet Rack System

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm
	Customized Pallet: other special size( you can contact us directly)
Beam Range	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright Range	80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness: 1.5~3.0mm
Color	Standard: Customized: MOQ( per 20FT container) (kakuequipment.en.made-in-china.com)
Weight Capacity	5000KG per level max ; 1500KG per pallet max
Package	Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper
Lead time	15-20 days for one container

Production Procedure
Service Content
Please Provide Information for Quick Quotation
1. Pallet Size (Length*Width*Loading Height in mm).2. Layout or Dimension (Length*Width*Net Height in mm) of your warehouse.3. Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you.4. How many bays and levels if available.5. Loading Capacity(kg) of each level or each pallet.
FAQ
a: May I know the status of my order?
We will send you photos or video and help you to update.
b: Quick manufacturing time.
For Normal orders, we will promise to produce within 15 workdays.
As a manufactory, we can essure the delivery time according to the formal contract.
c: What is delivery times?
Normally, delivery time is within 20 workdays.
d: What is the term of payment?
T/T: 30% deposit in advance after confirmed order,
70% balance payment before shipment
WESTERN UNION, PAYPAL
Factory Photos
