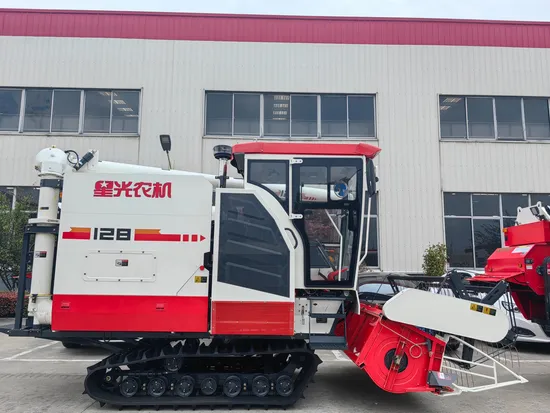

Thinker Full Feed Combine Harvester 100HP 120HP 4lz-6.0z 4lz-7.0z
Basic Info.
Model NO.
4LZ-6.0Z 4LZ-7.0Z
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Hydraulic Turbine
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Header Height(mm)
3250
Transport Package
Nude
Specification
/ mm
Trademark
SINOMADA
Origin
China
Production Capacity
100 Sets Per Month
Product Description
Product Description
1.Adopts 102HP engine with high power and low fuel consumption.
2.Cutting Width 2.2m for different areas of fields.
3.Liangyi special hydraulic gearbox 80 with best quality.
4.Use 45cc HST for working more smoothly.
5.Bigger threshing cylinder ensures grain lose less and much cleaner.
6.Stronger rubber track 500*90*56 with high teeth for working more efficient in deep mud field.
7.Sunshade
| Model | 4LZ-6.0 | ||
| Dimension (Length*Width*Height) mm | 5150*2350*2900 | ||
| Weight (kg) | 3260 | ||
| Working efficiency (hm2/h) | 0.6-0.7 | ||
| Cutter bar length (mm) | 2000 (or 2200) | ||
| Feeding capacity (t/h) | 18 | ||
| Engine | Type | Water cool, four stroke,turbocharging diesel engine | |
| Model | 4G33 | ||
| Output/rpm (HP/rpm) | 102/2600 | ||
| Fuel tank capacity (L) | 110 | ||
| Traveling system (riding_wheel system) | Crawler specification (width*length of ground connection) | 500*90*56 | |
| Ground pressure (kpa) | 19.6 | ||
| Ground length(mm) | 1710 | ||
| Gauge(mm) | 1250 | ||
| Ground clearance | 320 mm | ||
| Type of gearbox | Mechanical + hydraulic CV, 80 gearbox +HST45cc | ||
| Variable speed series | Advance stepless and backward stepless (3 gears each) | ||
| Theoretical Work Speed (m/s) | Lowspeed :0~1.11, Standard :0~1.47, Walking :0~2.14 | ||
| Working parts | Threshing cylinder | Type | Axial flow, spike tooth(vertical thresh) |
| Diameter& length | 620mm*1800mm | ||
| Reel | Speed (r/min) | 560 | |
| Flat area Concave Area (m2) | 1.456 | ||
| Cleaning | Oscillating •3Way Air Stream Cleaning System | ||
| Grain unloading method | Automatic discharging | ||
| Grain tank capacity | 1400L | ||
| Total loss (%) | Rice≤3.0,Wheat≤1.2 | ||
| Breakage rate (%) | Rice≤1.5,Wheat≤1 | ||
| Impurity rate (%) | Rice≤2.0,Wheat≤2.0 | ||
| Packing: | 3 sets in one 40 feet HQ container | ||
