Tdgc2j-1kVA 1000va Contact Type Auto Voltage Regulator Variac Transformer Factory

Product Description

TDGC2J-1KVA 1000VA Contact Type Auto Voltage Regulator Variac Transformer Factory Product Description TDGC2J Series contact voltage regulator's voltage regulation range could be 0-250V or 0-300V (customized one) for single phase type. It features in delicate design, no waveform distortion, small size, light weight, high efficiency, and sound performance etc. It could be used in chemical industry, light industry, metallurgy industry, and mechanical manufacturing industry etc Besides, it could be applied with testing device, home appliance to realize voltage regulation. It's an ideal AC voltage regulator.
Product Parameters

Product Name	Single Phase Variac/Variable Transformer
Rated Capacity	1KVA (Could be customized)
Product Model	TDGC2J-1KVA
Input Voltage	220VAC (Could be customized)
Rated Output Voltage	0-250VAC (Could be tailored)
Working Frequency	50HZ-60HZ
Insulation Class	F
Waveform Distortion	No Additional Waveform Distortion
Phase	Single Phase
Working Temperature	-10ºC~+50ºC
Ambient Relative Humidity	30%-80%
Protection Class	IP 20
Cooling Way	Dry Type Air Colling
Insulation Resistance	≥5MΩ
Working Effiency	>90%
Current Type	AC
Product Type	Servo Type
Regulation Method	Manual Adjustion

Product Advantages TDGC2J series single phase variac/variable transformer features in delicate design, no waveform distortion, small size, light weight, high efficiency, and sound performance etc.
Product Details

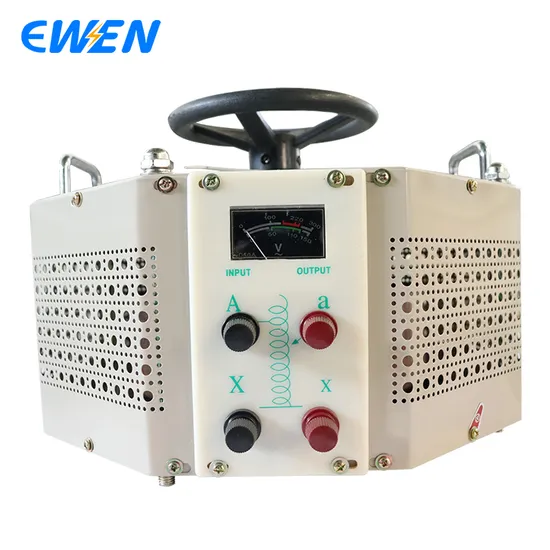

The single phase TDGC2J series variac's voltage indication metal panel and its voltage adjustion knob.
For sound ventilation, there are multiple heat dissipation holes to ensure sufficient ventilation, and thus lowering the temperature rise of the product.
We use high quality parts to make the product to ensure its sound performance and long service lifetime.
Pure copper coil, high quality carbon brush, and good servo motor etc.
Product Cases
Ewen Electrical has been dedicated to designing customized products for our customers. If you have specific technical requirements, the variac/variable transformer could be customized according to your needs.
It could be manual adjustion type, motorised adjustion type (with cabinet and step down and up buttons).
The voltage and rated capacity also could be tailored according to your demands.
Company Profile
Ewen Electrical adheres to the business policy of seeking development by science and technology and survival by quality, and wins the recognition of customers with excellent technology, advanced equipment, high-quality products, thoughtful service, flexible business methods and good corporate reputation.
Certifications Ewen attaches much importance to product quality by upholding the principle of developing by technology and surviving by quality. We produce goods according to ISO quality system standards and international and domestic industrial standards, which wins trusts of customers home and abroad. In the future, we would be dedicated to creating economic benefits and social benefits by increasing technology development budget, so as to enable us to become a energy-saving, environmental, technology-oriented enterprise.

FAQ Q: How long is the lead time?A: It's normally five to ten days. Certainly it depends on the quantity and product requirements. If the quantity is not that large, 10 days or so. If it's normal products, it takes us less than 10 days to produce it. For large quantity and customized products, it needs 20 to 30 days.Q: How do you control the product quality?A: From material coming to product manufacturing, we have professional staff who are responsible for quality inspection. Only the product is up to standard, can we ship it to our customers.Q: What is the payment terms?A:FOB/CIF/CFR,normally with 30% deposit for normal products and at least 50% advance payment for tailored products and all balance paid before shipment.Q: How long is the warranty?A: We provide one year warranty for our customers. If there is any problem occurred to the product, we could supply the spare parts for you for free. During the warranty period, we would provide technical support with you in case there is any question.Q: Could you please provide technical support in product installation?A: Yes, certainly. We have a professional technical team which is responsible for product installation and application guidance for our customers.Q: What certificates have you obtained?A: We have obtained CE and ISO:9001 certificates so far. We are trying to get more certificates related to our products.Q: Tell me the package of your products?A: For large products, we use strong wooden case for protection. For small products, we use carton.Q: Can you put our logo on your product?A: Yes, we accept OEM and ODM. If the quantity is large, your logo could be put on our products.Q: Where is your major market?A: Our markets include central Asia, East Asia, South Asia, Africa, South America, and North America etc.Q: What about your capacity?A: It depends on the product. For instance, for small-power products, we could produce ten thousand pcs a month while 2000 pcs for larger-power products.Q: What is the material of your products?A: The major material is copper and aluminum. It is decided upon your requirements and your budget.
