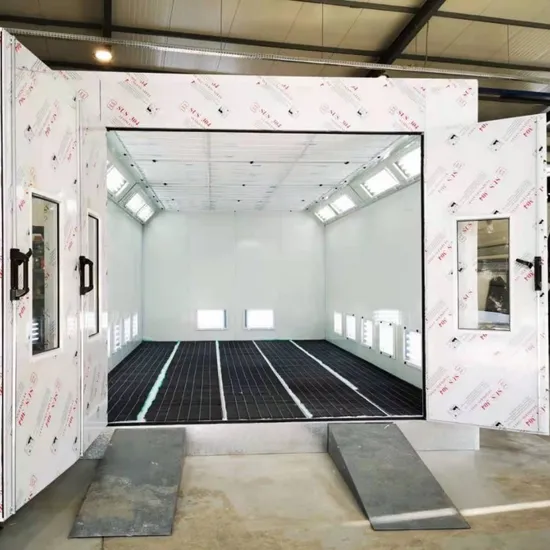

Auto Maintenance Paint Booth Car Spray Oven with Horizontal Short Wall Lights
Basic Info.
Model NO.
GT2475
Type
Spray Booth
Certification
CE
Substrate
Iron
Brand
Aos
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Room Outside Size
6950*4000*3300mm
Room Inside Size
6850*3900*2650mm
Wall Panels
50mm Thick Antiflaming EPS Panel
Wall Panel Skin
0.4mm Thick Galvanized Sheet
Front Door Size
3-Fold Main Doors,Total 3000*2500mm(W*H)
Side Door
1 Unit 700*1800mm(W*H)
Floor Grills
2 Rows, Material: 30*4mm Thick;
Embossed Plate
2mm Thick Plate with Supports, 3 Rows on Floor
Ramps
Size:1600*650*260mm, 2PCS
Air Fans
Intake:2PCS*4kw,Exhaust Fan1*7.5kw;
Burner
Italy Riello G20 Diesel Burner
Ceiling Lights
8units*3PCS=24PCS
Wall Lights
6units*3PCS=18PCS
Electric Damper
TF16-230, 20n.M;
Filters
Pre-Filter, Floor Filter, Ceiling Filter
Transport Package
Container Loading
Specification
6.95*4*3.3m
Trademark
OKEAH
Origin
China
HS Code
8419899090
Production Capacity
20000sets/Year
Product Description
Detailed PhotosProduct Parameters
| Room outside size: | 6950*4000*3300mm | |
| Room inside size: | 6850*3900*2650mm | |
| Panels: | Wall panels:50mm thick antiflaming EPS panel,with 0.4mm thick steel skin, With tongue & groove style, anti-flame and heat-insulation; Roof panel: galvanized steel panels. | |
| Main door: | 3-fold main doors,total 3000*2500mm(W*H),with safety glass, with handles and high-pressure safety lock, rubber strips. | |
| Side door: | 1 unit 700*1800mm(W*H), with safety glass windows, aluminum alloy frame, with handle,safety lock and rubber strips. | |
| Basement: | Total height is 300mm with grills,embossed plates, and bottom supports; Grills: 2 rows, material: 30*4mm thick; Embossed plate:2mm thick plate with supports, 3 rows on floor; Ramp:Two sets of hard strength ramps, size:1600*650*260mm; | |
| Air fans: | Intake Fan: | 2*4kw;double-inlet centrifugal fans; 24000m³/h. |
| Exhaust Fan: | 1*7.5kw; double-inlet centrifugal fan;25000m³/h. | |
| Cabinets: | Bottom cabinet for the fans, size:2700*1100*1290mm; Upper cabinet for heating exchanger, size:1700*1100*1290mm; | |
| Air ducts: | Exhaust air ducts: Trapezoidal duct: 1pc; Elbow 90°duct:1pc; Straight ducts:2pcs, size:700*700*900mm; Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm. | |
Filtering system: | Pre-filter, filtering rate>83%,can capture granules larger than 10μm; Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm; Floor filter, filtering rate>70%. | |
Heating System: | a:Riello disel burner G10 or G20 heating; b:Electric infrared heating lamps,10sets *3kw, 30kw in total. Tube service time>=6000 hours. | |
| Lighting system: | Ceiling lights: 8units*3pcs=24pcs, powder-coated light box. Wall lights:8units*4pcs=32pcs,horiztonal set,powder-coated light box. | |
| Controlling system: | Intelligent control:power switch,spray/baking switch,light switch,emergency stop, electric damper button. | |
| Power total: | About 42kw, voltage: 380V/50HZ/3P | |
