8 Cavities Full Servos Automatic Blow Molding Machine Plastic Pet Preform Stretch Water Bottle 9000 Bottles Per Hour

Product Description

Product decription

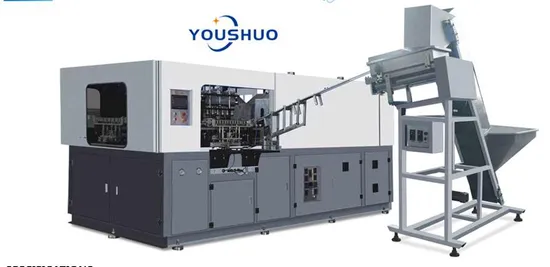

this is full automatic bottle blowing machine for 600ml bottle.
this machine is suitable for blowing PET bottles between 5ml and 600ml.
Our machine production process is stable, energy-saving, and has a long service life.
These bottle blowing machines also have 2, 3, 4, 6 and 8 cavities.
Technical Parameter

Type	Item	Unit	Technology Data
Main Machine	Max. Volume of Product	L	600m
	Theoretical Productive Capacity	pcs/hr	8000-10000
	Neck size of product	mm	45
	Max. Bottle Diameter	mm	68
	Max. Bottle Height	mm	250
	Mold center	mm	75
	Working Pressure	bar	9
	Working air consumption	M3/min	2.4
	Blowing Pressure	bar	30
	Blowing air consumption	M3/min	6
	Weight of Main Machine	KG	6000
	Dimension of Main machine	M	5.9*2*2
Loader	Weight of Loader	KG	300
	Dimension of Infrared Heater	M	2.7*1.55*2.7
Electricity	Voltage/Frequency	V	380
	Total Power	KW	92
	Power	KW	35-40
Note: Due to continual improvement, specifications are subject to change without notification. Please refer to the latest actual machine.

Stable locking structure.
The integrated oven design is more energy-efficient, and the lamp tube is designed for quick adjustment. Machine features
1. Our machine has fine workmanship, stable production, energy saving, and long service life. Machines that are over 10 years old still have customers in normal production.
2. From pre installation to bottle blowing, achieve fully automated operation.
3. The oven has a unique design that ensures even baking and energy efficiency.
4. The touch screen human-machine interaction interface is easy and fast to operate.
5. Automatic fault alarm system, which automatically switches to safe mode when a fault occurs, effectively protecting the machine.
6. Manufacture personalized high-end customized machines according to the actual needs of customers. Make machines more intelligent.For example, adding a high-pressure recovery system configuration can save more than 25% of high-pressure compressed gas. Add PLC temperature control system, independent temperature control system, etc.
