304 316L Stainless Steel Folding Blades Foldable Agitator for IBC Tanks
| US$90.00-300.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
folding blade
Application Area
Chemical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Drum
Stirring Type
Forced
Working
Diffusion Mixer
Moc
SS304 SS316
Used to
IBC Tanks
Shaft
Available Under Request
Motor
Available Under Requst
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Carton
Specification
diameter 15~50cm
Trademark
Ranking
Origin
Wenzhou China
Production Capacity
5000cps Per Month
Product Description

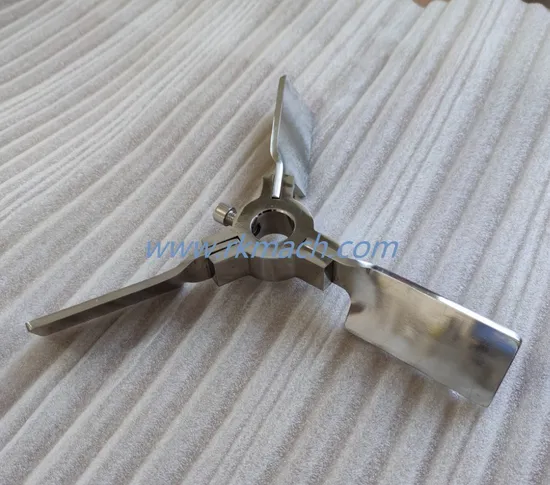

Folding balde for IBC tanks sketchthe folding balde in this link is for standard IBC tanks with opening on top.
the folding balde mentioned in this link need to installed on a mixng shaft and driven by a suitable motor.
if users need the folidng mixer together with the mixing shaft and the motor, please tell our sales team directly.
Main specifciation
| No. | model (Stock No.) | D3 Max diameter mm | D1 shaft diameter mm | W paddle width mm | D2 diameter after folding mm | Material | pin slot |
| 1 | 100(8-16) | ||||||
| 2 | 120(8-16) | ||||||
| 3 | 150(12-20) | 150 | 12~20 | 25 | 50 | SS304 | customized |
| 4 | 200(12-20) | 200 | 12~20 | 25 | 50 | SS304 | customized |
| 5 | 250(12-20) | 250 | 12~20 | 25 | 50 | SS304 | customized |
| 250(20-25) | 250 | 20~25 | 45 | 90 | SS304 | customized | |
| 6 | 300(16-20) | 300 | 16~20 | 25 | 50 | SS304 | customized |
| 7 | 300(20-30) | 300 | 20~30 | 45 | 90 | SS304 | customized |
| 8 | 400(16-30) | 400 | 16~30 | 45 | 90 | SS304 | customized |
| 9 | 500(16-30) | 500 | 16~30 | 45 | 90 | SS304 | customized |
| 10 | customized |
