Advanced Zmde Industrial 3D CNC H Beam Drilling Machine

Product Description

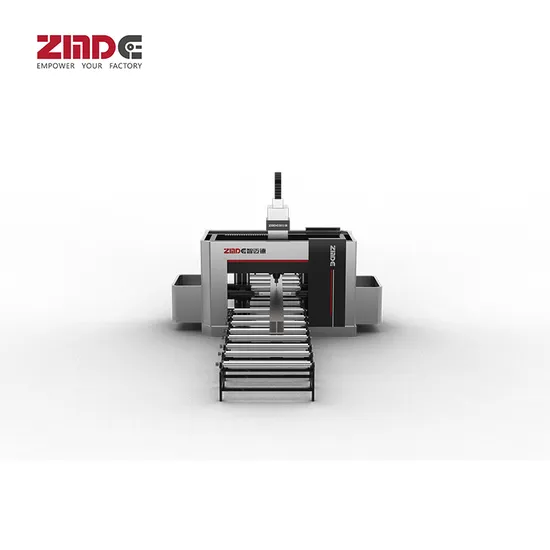

ZMDE Industrial 3D CNC Drilling for H Beam.
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

Experience unparalleled precision with our device, designed to drill exact holes on three sides of H-beam steel simultaneously. Equipped with 7 CNC axes and a CAD/CAM-generated processing program, it handles H-beam sections up to 1000×500mm and drills diameters as large as 33.5mm. Our advanced control system integrates computer numerical control, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece dimensions to automatically generate, store, recall, display, and process machining programs by part number.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a trailblazer in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. As a high-tech enterprise and recognized 'small giant' in national specialization, our core industries focus on steel structure assembly, intelligent industrial mother machines, and IoT systems.Our expertise spans two principal areas: intelligent control systems and industrial IoT integration.
Our headquarters in Lingang New Area, Pudong New District, Shanghai, houses the Research Institute of Artificial Intelligence for Assembled Buildings. Spanning 32,000 square meters, it spearheads the management and development of cutting-edge AI technologies for intelligent buildings and industrial IoT.
Our Shandong base, located in Weicheng District, Weifang City, focuses on the R&D and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.Specializing in intelligent industrial mother machines for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients.2. Q: Could you specify the payment terms you accept?A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer).3. Q: What is the typical delivery time for your orders?A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently.4. Q: What is the duration of your warranty period?A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits.5. Q: Do you offer ODM/OEM services?A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
