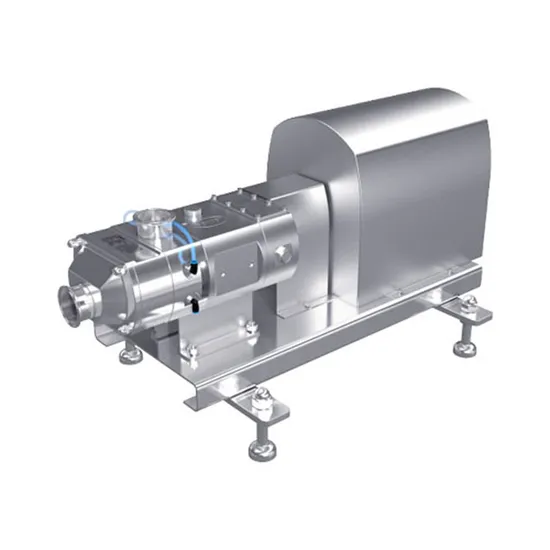

Donjoy SS316L Hygienic Twin Screw Pump Gear Pump with Pumpcover
| US$3,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LGL-20-18
Processing Material
Animal Raw Materials
Application
Pet Food, Chocolate, Ice Cream, Vegetable, Dairy, Beverage, Food Transfer
Customized
Customized
Certification
CE, ISO9001, Us-3A
Power Source
Electric
Automatic Grade
Automatic
Hygienic Level
Sanitary
Transfer Partical
Yes
Hopper
Option
Product Name
Universal Twin Screw Pump
Keyword
Universal Twin Screw Pump
Transport Package
Wooden Case
Specification
LG-L/R
Trademark
DONJOY
Origin
China
HS Code
8413602190
Production Capacity
10000PCS
Packaging & Delivery
Package Size
143.00cm * 72.00cm * 153.00cm
Package Gross Weight
300.000kg
Product Description
Donjoy SS316L Hygienic Twin Screw Pump Gear Pump with Pump coverTwin screw pumps, with strong CIP function, could be transported solid particles, gas-liquid mixtures, media with high or low viscosity and so on. It not only could be used to extract and convey media but also could be used in CIP and SIP systems. It could reduce pipeline, valve and CIP pump, which improves efficiency and reduce cost. Such a pump also is equipped with extra advantages such as no pulse, no particle damage, high pressure, wide speed range, large flow range and so on.
Advantage
Flexible solution for two-direction reversible, high pressure, high viscosity, large particle, pulse-free, liquid delivery
Specification
| Item name: | Twin Screw pump |
| Contact Material: | SS316L |
| Seal Material: | SIC/SIC/FKM |
| Max. Flow: | 110 m3/h |
| Speed range: | 10-3500 RPM |
| Mechanical seal: | SIC/SIC/FKM(Standard), Single or double mechanical seal |
| Working temperature: | -40~150 degree centigrade |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB/domestic |
| Motor Frequency: | 50HZ, 60HZ |
| Available Connection: | Clamped, Threaded, Flanged |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | Electric motor |
| Certificate: | 3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00 |
| Application Range: | Mash, Dairy, food, beverage, pharmacy, cosmetic etc |
| Packaging Details: | Plywood case |
Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.
