Automatic Poultry Feeding and Drinking System for Chicken Farm House Ground Floor Raising Keeping Equipment

Product Description

Product Description

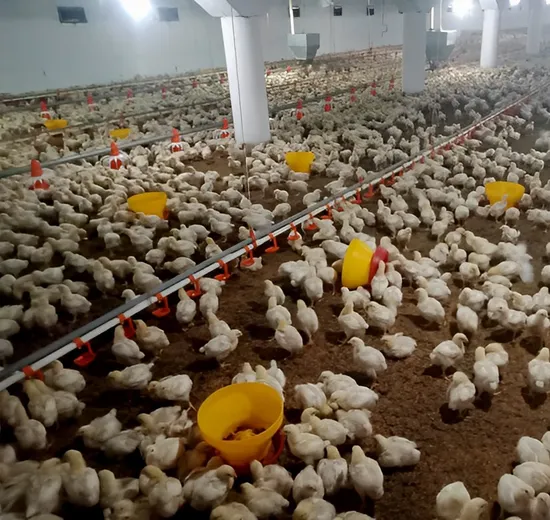

Automatic Poultry Feeding And Drinking System for chicken farm house ground floor raising keeping equipment
Advantage for poultry keeping equipment:
*Save time and labor, one shed just need one person.
*Increase survival rate.
*Easier to operate.
*Easier to install and clean.
*Longer service life.
*Competitive price.
*Complete controlled poultry equipment.
Complete poultry keeping equipment is including:
1.Main feeding line system (silo or manpower hopper are option)
2.Automatic pan feeding line system (Feed line quanity base on the chicken shed width&chicken quantity)
3.Automatic nipple drinking line system (Drink line quantity base on the chicken shed width&chicken quantity)
4.Ventilation system (50inch tunnel fan/54inch tunnel fan/36inch exhaust fan/air inlet-according to chicken shed area)
5.Cooling pad system (Cooling pad quantity base on the chicken shed area)
6.Heater system (Gas space heater/Gas brooder/Diesel heater/Coal heater for option)
7.Curtain system (for open side wall chicken shed)
8.Fogging system (Some Africa and South Africa customer use this system)
Product Parameters

Main feeding line system

Silo The silo is composed of silo body,silo lid and silo legs, etc.
Silo body is made of 275g/m hot galvanized panel (two sides).
There is a hole on the type-cone for checking the feed level.
We have different types of silos to meet different requirements.
Silo characteristics: high strength, anti-corrosive, easy installation and long service life

Capcity	Dia	Cone thickness	Body thickness	Wieght	Height
5ton/10m3	2.45m	1.0mm	1.0mm	420kg	4.7m
8ton/14.1m3	2.45m	1.0mm	1.0mm	470kg	5.6m
10ton/17.7m3	2.75m	1.0mm	1.0mm	600kg	5.6m
15ton/21.5m3	3.1m	1.0mm	1.0mm	640kg	5.6m
16ton/23.2m3	2.8m	1.0mm	1.0mm	655kg	6.5m
20ton/28.2m3	3.1m	1.0mm	1.0mm	755kg	6.5m

Manpower hopper
*Surface spray treatment, wear-resistant anti-corrosion, beautiful appearance; *The whole hopper is detachable, saving more space; *Four different sizes of hoppers for you to choose. You can choose the suitable size according to your feeding quantity and individual needs, you can also customized individually according to your requirements.

Capacity	Diemension	Thickness	Weight	Height
400kg/0.6m3	2.45m	2mm	420kg	1.055m
520kg/0.8m3	2.45m	2mm	470kg	1.055m
800kg/1.2m3	1.4mx1.4m	2mm	600kg	1.255m
1200kg/1.4m3	1.4mx1.4m	2mm	640kg	1.455m

Automatic pan feeding line system

Pan feeding line hopper
Structure:Assembled hopper, save shipping space and better for protecting surface galvanized layer.
Thickness:≥1.2mm Material:275g galvanized sheet.
Capacity:60kg/80kg/120kg
Driving motor
Rated power:0.75kw/1.1kw/1.5kw
Taiwan motor/Italy motor
Feed Sensor
Germany IFM /Israel Agrologic
Feeding pan Feeding pans with V-shaped can decrease the surplus of chick food,Fresh food supply for chicks.

Parameters: 1.Diameter:330mm
2.Material:PP
3.Sections:14/16 partitions
4.Feeding Quantity:40-50 chicks per pan

Optional feeding pan type:
Bigdutchman type/Valco Type/Plasson type
Feed pan capacity:50-55 birds per pc
Lifting winch-feeding line winch
Lifting Device,which mainly include winch,pulley wheels,fixing material and steel rope Features:
The Height of feeding pans is very important to the broilers,This lifting device can help you to adjust the height in order to give proper feeding condition to broilers according to their growing levels.It also saves your time when you do the clean-up or transporting of broilers.

Automatic nipple drinking line system

Front part system of nipple drinking line system
The front system is composed of water filtration, metering, water pressure display, water pressure regulation, and dosing device. Water supply pressure supply and storage device are optional
Doser-French Dosatron Working pressure: 0.3bar-6bar.
Highest working temperature: 40ºC
Dilution percentage: 0.2%-2% Public Doser
Add ratio 0.2%-2%
Gaskets 3*10mm,
Regulator valve:brass made
ø6 Groove gasket :4*12mm
Plasson type nipple drinking system
Water round pipe with nipples and drip cup
Option choice:
3m with 12 nipples and drip cup
3m with 15 nipples and drip cup Nipple Drinker
360 degree make sure large water flow.
Water flow:80-90ml/min
Broiler:8-12 birds/nipple Drip cup: new PP material
Aluminium frame support
Bigdtuchman type nipple drinking system
Water sqaure pipe with nipples and drip cup
25mm*2mm PVC square pipe,resistance 90° bending with seven times.
Option choice:
3m with 12 nipples and drip cup
3m with 15 nipples and drip cup
Nipple Drinker:
Double sealed nipple
360 degree make sure large water flow.
water flow:80-90l/min
Broiler:9-12 birds /nipple
Drip cup:new pp material
G.I support pipe

Lubing type nipple drinking system
Water sqaure pipe with nipples and drip cup
25mm*2mm PVC square pipe,resistance 90° bending with seven times.
Option choice:
3m with 12 nipples and drip cup
3m with 15 nipples and drip cup
Nipple Drinker
Double sealed nipple
360 degree make sure large water flow.
water flow:80-90l/min
Broiler:9-12 birds /nipple
Drip cup:new pp MATEIRAL
Aluminium frame support pipe

Cooling pad System

Frame of cooling pad system:
Galvanized Frame
Aluminum Alloy Frame
Stainless Steel Frame
Cooling pad paper:
Use new material and advanced
space crossing linking technology, high
absorbability, high water-resistant, anti
mildew and long service life
Height can be 1.6m, 1.8m,2m, etc

Ventilation system

Exhaust Fan-Push Pull type
1.Frame:275g Zinc coating Thicken galvanized sheet. 2.Motor: Chinese motor /Siemens motor .etc
Protection class: IP55 grade
Insulation class: F grade
3.Fan Blade:1.2mm, 430 stainless steel
4.Opening system:Centrifugal Push rod,which can keep the shutters open at complete 90 degree.
5.Belt: Chinese belt and Japanese Mitsuboshi brand belt.etc
50inch butterfly cone fan
Advanced cone designing, frontward open system, butterfly type, The cone designing can put air volume together and concentrate on the direction, more larger air capacity, more energy-saving and noise reduction. The protective net is strong and stable with high density, long service life and more durable
Air inlet window system
1.Air Inlet is made of ABS with UV resistant and anti-aging material. Long service life.2.There are two types for customer choice: BSTAI-1 Air Inlet with spring opening, BSTAI-2 Air Inlet without spring opening.3.Protecting mesh grid to preventing birds or other wild animal entry.

Poultry heating system

Environment control system

It contains Temperature dynamic diagram,Minimum ventilation rate dynamic diagram,lifting diagram,transverse ventilation controller,and longitudinal ventilation controller. 2.It can control Exhaust fans,Heater,Cooling pad,Lighting and feeding line.
3.It can be operated and monitored through mobile phone wirelessly.

FAQ

Q:Is your company a manufacture or Trading company? A:We are professional manufacture of Feeding line sysem, drinking line system, Ventilation equipment,Cooling equipment , Heating equipment ,Poultry farming equipment for poultry,workshop in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.

Please send us your inquiry, we will give you detailed quotation within 24 hours.!!!
