Small Pipe Winding Tube Electrical Cigarette Paper Tube Making Machine

Product Description

CFXG-80 Small Paper tube making machine
Performance & Characteristics

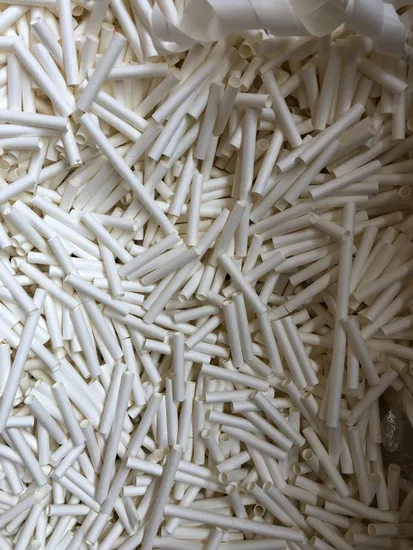

This Machine is suitable for producing different sizes of paper straws, such as OD 4.2, 5mm; 6mm; 8mm; 10m, 12mm etc.

1. This machine adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Technical Parameter

Straw Out diameter	4.2-13mm
Wall Thickness	0.3-1mm
Winding Speed	1-80 meters/min (depend on straw length and size)
Cutting System	Multi-blades Cutting (customized)
cutting system	Servo motor synchronism tracking cut
Gluing Way	Single & Double sides
Machine Frame	Stainless Steel Covered
Operator	1 person
Speed Control	By Inverter
Power Supply	380V / 3Phase / 50Hz(Customizable)
Auto Straw Collector	Included
Paper Reel Stand	4 Layers
Glue Unit	4 Layers
Measurement	Main Machine 4650*1160*1750mm Paper Stand 1540*1350*2000mm Glue Unit 7758*727*1470mm
Weight	2400kgs
Working Space	About 8000*5000mm

Company Profile
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 20+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success! Packaging & Shipping
Factory photo
