5 Gallon 18L 20L Recycled Plastic Water Bottle Preform Cover Lid Special Servo Injection Molding Machine

Product Description

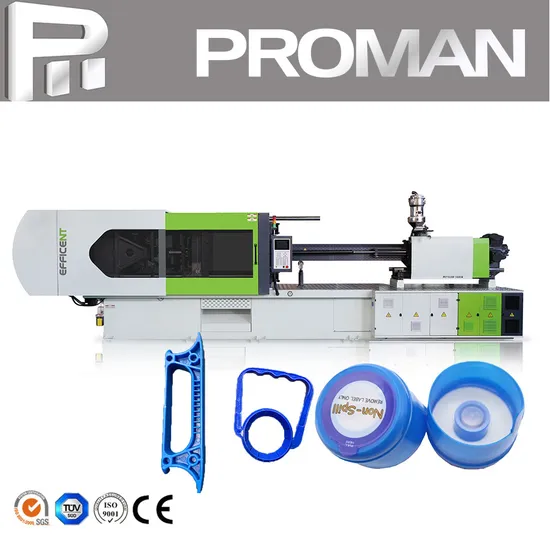

5 Gallon 18L 20L Recycled Plastic Water Bottle Preform Cover Lid Special Servo Injection Molding Machine Our automatic plastic perform and cap injection molding machine adopts a thermal flow system and high-pressure injection molding to get high precision of bottle mouth, bottleneck and screw. It can inject all kinds of plastic parts such as bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, etc.
Advantages of Our Plastic Preform Injection Molding Machine 1. Even the mainframe has no height limit for the workshop to be placed due to its low fuselage.
2. The product can be automatically dropped occasions, do not need to use a manipulator can also achieve automatic molding.
3. Because of the low fuselage, it is convenient for feeding and maintenance.
4. The mold shall be installed by crane.
5. The molding products are easy to be collected and packed by the conveyor belt when multiple sets are arranged in parallel.
Details of Our Plastic Preform Injection Molding Machine
Technical Parameters

Item	PM-1300A			PM-1600A			PM-2000A
screw diameter (mm)	35	40	45	45	50	55	50	55	60
screw l/d ratio (l/d)	24	21	18.7	23.3	21	19.1	23.1	21	19
theoretical shot volume (mm³)	173	226	286	358	442	534	491	594	707
shot weight (ps) (g)	158	206	260	326	402	486	447	540	643
injection pressure (mpa)	235	142	142	219	178	147	215	178	149
theoretical injection rate (ps) (g/s)	110	181	181	142	175	212	145	175	208
plasticising capacity (g/s)	13.8	19.7	27.1	20.1	26.5	34.2	22.5	28.7	35.4
max screw rotate speed (r/min)	250			200			170
injection stroke (mm)	180			225			250
Max.Clamping force(kn)	1300			1600			2000
Max.Opening stroke (mm)	400			460			500
space between (mm)	420*420			480*480			505*505
mould height (mm)	160-440			180-500			190-530
Max.Daylight (mm)	840			960			1030
pump motor power (kw)	13			15			18.5
heating power (kw)	9.2			13.6			16.6
heating zone	4			4			4
net weight	4.3			5.6			6.4
oil tank capacity (t)	360			420			420
intenational designation (l)	1300-410			1600-785			2000-1060

Our Service
Customized service We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly 2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well. 3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.4.We provide one year warranty 5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier). 7.12 Months guarantee and life-long technical support.8.Your business relationship with us will be confidential to any third party. 9.Good after-sale service offered, please get back to us if you got any questions. Quality Control We have separate quality control department, which make sure the raw materials are qualified,also ensure the machine running smoothly. If you want to know more information about the product,Send inquiry to us, we will solve any of your problems and send you running video for reference.
Packaging & Shipping
Company Information
Zhangjiagang Proman Machine Co., Ltd. is a production manufacturer and exporter in China, specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.Our factory was established in the year of 1998, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineers of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.Besides, we have our own designs for the bottles.Proman Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply!
FAQ 1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Plastic Preform Injection Molding Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
