Laboratory Autoclave/High-Pressure Reaction Zero Leakage Chemical Equipment Machinery with Magnetic Coupling Seal
| US$1,400.00-4,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GSHA
Function
Reaction Pressure Vessel
Application
Mixture
Material
Customized
Pressure
Customized
Storage Medium
Customized
Pressure Level
Customized
Condition
New
Shaft Sealing Form
Magnetic Seal
Lead Time
2-3 Months
Branch Office
California, USA
ODM
Available
OEM
Available
Specification
customized
Trademark
LUHAO
Origin
China
HS Code
84198990
Product Description

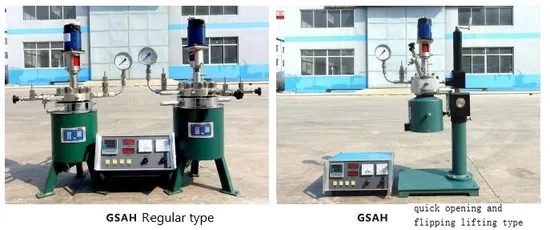

The quick opening and flipping lifting type is a product that is further optimized on the basis of the conventional type. A snap ring quick opening structure is used between the kettle cover and the kettle body, which allows for easy opening or lifting of the kettle cover and horizontal rotation of the kettle body for material pouring. This thoroughly discharges the material inside the kettle, reduces labor intensity, and improves work efficiency.| MODEL | GSHA-0.25L | GSHA-0.5L | GSHA-1L | GSHA-2L | GSHA-3L | GSHA-5L |
| CAPACITY | 0.25L | 0.5L | 1L | 2L | 3L | 5L |
| WORK PRESSURE MPa | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 |
| WORK TEMPERATURE C° | 300 | 300 | 300 | 300 | 300 | 300 |
| rpm | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-750 |
| DC motor power W | 123 | 123 | 123 | 123 | 123 | 355 |
| Electric-heating power KW | 0.8 | 1 | 1.5 | 2 | 2.5 | 4 |
| Control system | The power supply is 220V, equipped with a high-precision PID controller (automatic or manual control), with a control accuracy of ± 1.5C °. It has functions such as temperature setting, temperature display, speed display, stepless speed regulation, adjustable heating power, etc. It is equipped with power/heating wires, motor wires, speed measuring wires, PT100, etc. | |||||
| Main materials | Stainless steel S30408/S32168/S31603,S39042,Titanium materials, duplex steels, fetters, Hastelloy alloys, zirconium materials, Monel materials, etc. | |||||
| Heating form | 200V electric heating, non-standard design of jacket thermal oil electric heating and jacket circulating heating according to requirements | |||||
| Mixing form | Flat blade, folding blade, propulsion type, three blade propeller type, turbine self suction type, disc inclined blade, anchor type, screw belt type, etc., standard configuration is propulsion type | |||||
| Application | Catalytic hydrogenation, high-pressure reactions, agrochemical pesticides, hydrothermal synthesis, hydrometallurgy, polymerization condensation, aluminum tin oxide, petrochemicals, fluorination oxidation, deep cooling, etc | |||||
| Shaft sealing form | Magnetic coupling driven static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly | |||||
| Remarks | 0.5L, IL, and 2L are the best for quick opening flip type, but 3L and 5L are not recommended; The conventional 2-5L for ultra-high temperature and ultra-high pressure is suitable. Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs. | |||||
| LUHAO Chemical Machinery Co. Ltd | ||||||||||||||
| Pressure Vessel Design Information Collection Form | ||||||||||||||
| Vessel | Jacket (Coil) | |||||||||||||
| Work Medium | Name | |||||||||||||
| Components | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Characteristics | ||||||||||||||
| Viscosity (cP) | ||||||||||||||
| Flow Velocity(m³/h) | ||||||||||||||
| Design pressure (Mpa) | ||||||||||||||
| Work pressure (Mpa) | ||||||||||||||
| Design temperature(ºC) | ||||||||||||||
| Work temperature (ºC) | ||||||||||||||
| Wall temperature (ºC) | ||||||||||||||
| Diamter (mm) | ||||||||||||||
| Length (mm) | ||||||||||||||
| Capacity(m³) | ||||||||||||||
| Effective capacity (m³) | ||||||||||||||
| Corrosion allowance (mm) | ||||||||||||||
| Corrosion speed (mm/year) | ||||||||||||||
| Recommended Materials | ||||||||||||||
| Lowest value of average monthly temperature(ºC) | ||||||||||||||
| Site location | ||||||||||||||
| Installation condition | Indoor Outdoor | |||||||||||||
| Catalyst Volume(m³) | ||||||||||||||
| Catalyst Density(Kg/m³) | ||||||||||||||
| Heat Transfer Area() | ||||||||||||||
| Coil Specification | ||||||||||||||
| Basic Wind Pressure(Mpa) | ||||||||||||||
| Seismic Basic Intensity | ||||||||||||||
| Ambient Temperature(ºC) | ||||||||||||||
| Site Type | ||||||||||||||
| Operating Mode | ||||||||||||||
| Insulation Materials | Name | |||||||||||||
| Thickness | ||||||||||||||
| Density (Kg/m³) | ||||||||||||||
| Seal Requirements | ||||||||||||||
| Liquid Level Gauge | ||||||||||||||
| Emergency Cut-off | ||||||||||||||
| Static Electricity Removal | ||||||||||||||
| Anti Eddy Current Requirement for Liquid Outlet | ||||||||||||||
| Installation and Mantainance Requirements | ||||||||||||||
| Expected Useful Life (years) | ||||||||||||||
| Safety accessories | Vessel | Jacket (Coil) | ||||||||||||
| Location | ||||||||||||||
| Type | ||||||||||||||
| Specification | ||||||||||||||
| Quantity | ||||||||||||||
| Set pressure(Mpa) | ||||||||||||||
| Burst disc | ||||||||||||||
| Burst pressure(Mpa) | ||||||||||||||
| Safety discharge(kg/h) | ||||||||||||||
| Agitator | Type | |||||||||||||
| Impeller Diameter(mm) | ||||||||||||||
| Speed(r/min) | ||||||||||||||
| Motor | Model | |||||||||||||
| Power(kw) | ||||||||||||||
| Explosion Proof Grade | ||||||||||||||
| Speed reducer | ||||||||||||||
| Piping Table | ||||||||||||||
| No. | Dimension | Pressure | Connection Size Standard | Connection Surface Type | Function | |||||||||
| a | ||||||||||||||
| b | ||||||||||||||
| c | ||||||||||||||
| d | ||||||||||||||
| e | ||||||||||||||
| f | ||||||||||||||
| g | ||||||||||||||
| h | ||||||||||||||
| j | ||||||||||||||
| k | ||||||||||||||
| Other Requirements if any | ||||||||||||||
Kindly fill this form so that we can work out a quote for you.
