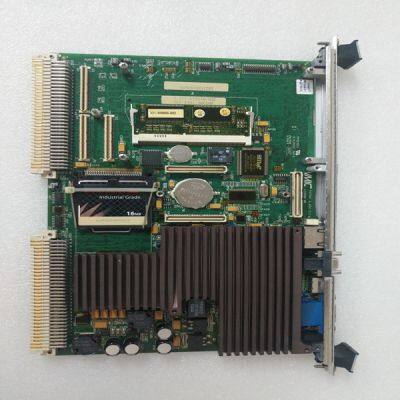

IS215UCVEM08B IS215UCVEH2AE

Product Details

Product Description

Product Description
Brand:GE
Type: IS215UCVEM08B IS215UCVEH2AE
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
DInp4 Inactive, Active Indicates the state of the hardware input DInP4 on the Command I/O connector (J4). For OpMode = Position, PosCmdSrc = Step-Dir this input is the Direction input. In the inactive state, no LED current, with positive GearOut PosCmd increments with each Step input edge, i.e. the motor moves clockwise. 0 - Active state, current flows in opto isolator input diode. 1 - Inactive state, no current flow. DriveOK Fault , No Fault Drive fault status indicator. This signal is actually the inverse of the FAULT/ DOUT1 output of the drive on the Command I/O connector (J4). Current flows through DOUT1 when DriveOK is active or logic one. 0 - Drive fault, see FaultCode. 1 - Drive not faulted. EMUAI 0, 1 This variable indicates the state of the emulated encoder channel A pin on the Command I/O connector (J4). 0 - Input CH A OUT– more positive then CH A OUT+. 1 - Input CH A OUT+ more positive then CH A OUT–. EMUBI 0, 1 This variable indicates the state of the emulated encoder channel B pin on the Command I/O connector (J4). 0 - Input CH B OUT– more positive then CH B OUT+. 1 - Input CH B OUT+ more positive then CH B OUT–. Enabled Off, On This variable indicates the enable state of the drive power stage. This signal is the inverse of the active on RUN/DOUT2 output of the drive on the Command I/O connector (J4). Current flows through DOUT2 when Enabled is active or logic one. 0 - Drive disabled power stage OFF. 1 - Drive enabled power stage ON. EnDatDistMT 0 to 65535 Supported over SynqNet. If an EnDat 2.1/2.2 encoder is present, this variable holds the number of distinguishable multi-turns a rotary encoder can resolve. EnDatPPR 0 to 232 - 1 Supported over SynqNet. If an EnDat 2.1/2.2 encoder is present, this variable holds the number of signal periods per revolution for a rotary encoder or signal period length in nm (0.001um) for linear encoders. ExtFaults Status Value This variable gives the extended fault status of the drive. Each bit represents an individual fault that is logically OR-ed with other faults. Note that this variable remembers its last active value and can be used as a one deep fault log. Code Extended fault Code Extended fault 1 SFD UART parity error 9 Drive under temperature 2 SFD UART overrun error 10 Drive short circuit 3 SFD UART framing error 11 Drive output over current 4 SFD frame timeout 12 Option card read timeout 5 SFD transfer incomplete 13 Option card watchdog timeout 6 SFD CRC error(s) 14 Step size overflow 7 SFD Motor Data timeout 15 Position error overflow 8 Drive over temperature 16 AuxFB Fault
