End Glow Plastic Optical Fiber for Decorative Lighting

Product Description

LF Series End Light Fiber
LF Series End Light Fiber consists of PMMA fiber core and fluororesin cladding. Fiber diameter ranges from 0.25mm to 3.0mm. With strong end glow performance, LF end light plastic optical fibers are widely used for decorative lighting such as star ceilings, chandeliers, logos, etc.
1. Specifications

Model	Fiber diameter (mm)	Coil length (m)	Attenuation (dB/m)
LF-250	0.25	12000	≤0.4
LF-500	0.5	6000	≤0.35
LF-750	0.75	2700	≤0.3
LF-1000	1.0	1500
LF-1500	1.5	700
LF-2000	2.0	350
LF-2500	2.5	250
LF-3000	3.0	150
LF-4000	4.0	90
LF2-750	0.75	2700	≤0.25
LF2-1000	1.0	1500
LF2-1500	1.5	700
LF2-2000	2.0	350
LF2-2500	2.5	250
LF2-3000	3.0	150

2. Technical Parameters

Item	Parameters
Fiber core material	Polymethyl Methacrylate(PMMA)
Cladding material	Fluroresin
Refractive Index Type	Step Index
Numerical Aperture	0.5
Tensile Strength	≥350 N
Yield Elongation	≥4%
Minimum Bending Radius	≥ 10 times of fiber diameter
Storage and operating temperature	-55ºC~+70ºC
Recommended operating temperature	-40ºC~+70ºC
Installation temperature	-20ºC~+70ºC

3. Features
Smooth surface;
Good flexibility;
No ultraviolet or infrared ray transmitted;
Non-conducting, no heat transfer;
Strong end light effect.
4. Applications
Usually used with LED light engines, LF series end glow fibers are well used for star ceiling, fiber optic 3-D mirror, fiber optic chandelier, optical fiber logos and so on.

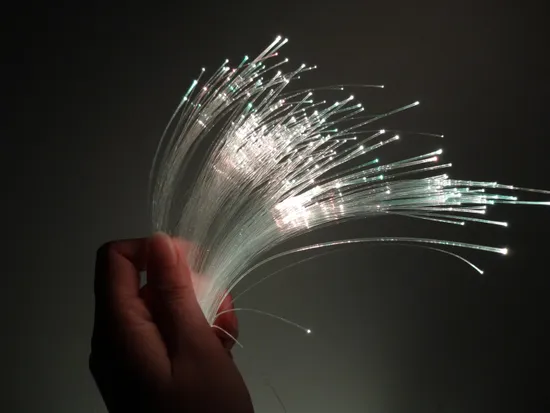

5. Product and Application Pictures

6.Huiyuan History 2000- Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology. Set up to make breakthroughs in industrialization development of the low-loss PMMA plastic optical fiber technology. 2003- First mass production of low-loss PMMA plastic optical fiber,breaking themonopoly of foreign companies andilling the gaps in the domestic indusry. 2004- Authorized the Ministry of Information Industry to firmulate National Communication Industry Standards in Platic Optical Fiber for communication(YD/T 1447-2006) 2006- Develped plastic optical fibers with attenuation lower than 0.2db/m,which reached international technicalstandards and succeeded in the project assessment of Ministry of Science and technology. 2007- Passed ISO9001 ubternational quality crtification. 2009- Approved by National Development and Reform Commission, the only POF Engineering Laboratory of China, the POF Production and Application of the National and Local Engineering Laboratory was fficallyl set up. 2013- Authorized by the Ministry of Industry and Information Technology (MIT), Huiyuan revised the National Communication Industry Standard (YD/T1447-2013) of Plastic Optical Fiber for Communication. 2014- The Chengdu Academicians (Experts) Innovation Workstation was instituted in Huiyuan. 2015-Approved by Standardization Administration of China, Huiyuan formulated several standards of the national power industry. They are: "Technical Specification of POF in Electric Power Information Transmission System, Part I: Technical Requirements" GB/T 31990.1-2015, Technical Specification of POF in Electric Power Information Transmission System, Part II Optical Transceivers" GB/T31990.3-2015, " Technical Specification of POF in Electric Power Information Transmission System, Part IV: POF Cable. 2016- The project of Huiyuan' s 650nm Optical Transceivers was identified with Sichuan Scientific and Technological Achievements Certificate of Registration.
