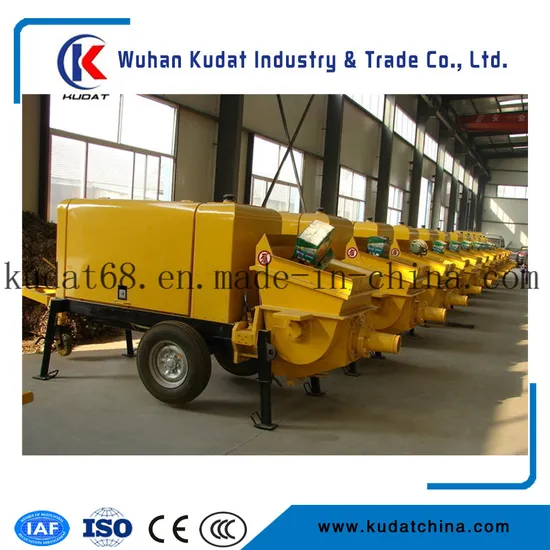

Electric Concrete Delivery Pump Hbt80sea
| US$50,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBT80SEA-1818
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
75m²/h
Feeding Height
1390mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Valve
S Valve
Feeding Pressure (MPa)
18
Max. Theo. Feeding Volume (M3/H)
80
Electric Motor (Kw)
132
Hydraulic Oil Tank Capacity
560
Oversize L*W*H(mm)
6200*2050*2200
Max.Trail Speed (Km/H)
8km
Total Weight (Kg)
7410
Olume of Hopper*Loading Height M3/mm
0.9*1400
Max. Feeding Aggregate Diameter (mm)
50
Transport Package
Nude Packing
Specification
ISO, CE
Trademark
Kudat
Origin
China
HS Code
84134000
Production Capacity
500units /Month
Product Description
The HBT series concrete pumps have over 20 types of products specifications, including diesel engine and electrical engine S valve and gate Valve pumps. Through worldwide souring of parts and technology from leading suppliers, it enables HBT series concrete pumps to a high efficient and reliable concrete transporting machine.Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer economic life will enhance the overall quality of the machine as a whole.
Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out pumping and direction switching are operating independently, rendering the system simpler and more reliable.
Using returned oil filter technology to prevent alien
Objects from entering the hydraulic circuit, further
Improving the reliability of the system.
Using the anti-wear hydraulic oil specially made
By Esso of US enhacing durability of the machine
| HBT80SEA-1818 | ||||
| Valve | S Valve | |||
| Feeding pressure (MPa) | High (MPa) | 18 | ||
| Low (MPa) | 9.2 | |||
| Max. theo. Feeding volume (m3/h) | High (m 3 /h) | 46 | ||
| Low (m 3 /h) | 80 | |||
| Electric motor | (kW) | 132 | ||
| Main | Rate pressure (MPa) | 32 | ||
| Rate flow (L/min) | 385 | |||
| Max. theo. delivery. (m) | Pipe | Ø 150A | horizontal 1350/ vertical 310 | |
| Ø 125A | horizontal 1250/vertical 290 | |||
| Max. feeding Aggregate diameter mm | Pipe | Ø 150A | 50 | |
| Ø 125A | 40 | |||
| Feeding cylinder (Bore x Stroke) (mm) | Ø 200× 1800 | |||
| Volume of hopper × Loading height m 3 /mm | 0.9× 1400 | |||
| Hydraulic oil tank capacity | 560 | |||
| Oversize L × W × H(mm) | 6200× 2050× 2200 | |||
| Max. trail speed (km/h) | ≤ 8KM | |||
| Total weight (KG) | 7410 | |||
