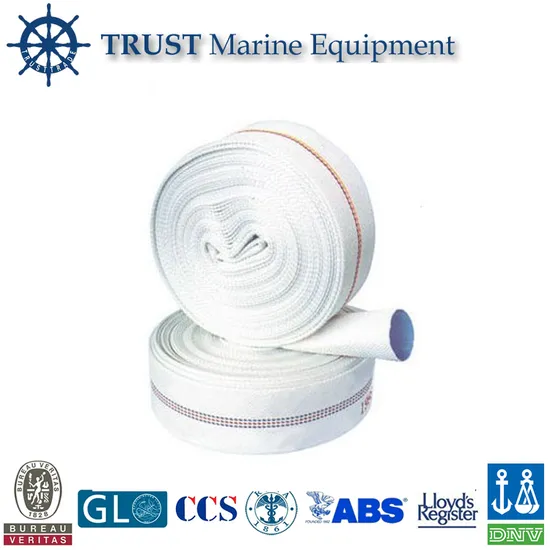

Fire Fighting Fire Resitant Hose
| US$20.00-100.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
TRUST
Hose Coupling Type
Hose Coupling
Fire Hose Length
20m
Working Pressure
0~6
Diameter
25~150
Lining
With Lining
Weaving Type
Twill Weaving
Hose Coupling Structure
Screw
Color
White
PVC Lined Fire Resistant Hose Fire Hose
PVC Lined Fire Resistant Hose Fire Hose Price
Hose Lined Material
PVC
Usage
Fire Fighting
Hose Jacket Material
High Intensity Polyester Filament
Length(M/Roll)
10/20/25/30m
Test Pressure
1.5/2.0/2.4/3.0 MPa
Bursting Pressure
3.0/3.9/4.8/6.0MPa
Workable Temperature
-20 Degree to 45 Degree
Transport Package
Suitable for The Long Distance Transportation
Specification
ABS, LR, BV, NK, DNV, RINA, RS, IRS, CCS
Trademark
TRUST
Origin
Jiangsu, China (Mainland)
Production Capacity
10000 Meters Per Month
Product Description
Product Description1) PVC/ Rubber/ PU Lining
2) The jacket of fire hose is wove by high intensity of polyester filament or polyester short-fiber (twill/plain weave)
3) There are special adhesive (solid or liquid) between the jacket and the hose. the hose is soft and highly polished, reduce the flow resistance
4) Thinner and more soft, lighter and more convenient to use.
5) High pressure resistance, low temperature resistance, anti-corrosion. Aging resistance.wear-resisting
6) We can provide different color lining: blue, black, transparent, etc or according to your requirement
7) We can provide length: 10m - 40m or according to your requirement
Parameters
Diameter (Inch/mm) | Working Pressure (MPa/BAR/PSI) | Testing Pressure (MPa/BAR/PSI) | Bursting Pressure (MPa/BAR/PSI) | Length (M/FEET) |
1 25 | 1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300 | 1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450 | 3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900 | 10 15/50 20 25 30/100 |
1-1/2 40 | ||||
2 50 | ||||
2-1/2 65 | ||||
3 80 | ||||
3-1/2 90 | ||||
4 100 | ||||
4-1/2 115 | ||||
5 125 | ||||
5-1/2 140 | ||||
6 150 |
About our company
Our company is specialized in manufacturing and exporting marine equipment. To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.
Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.
