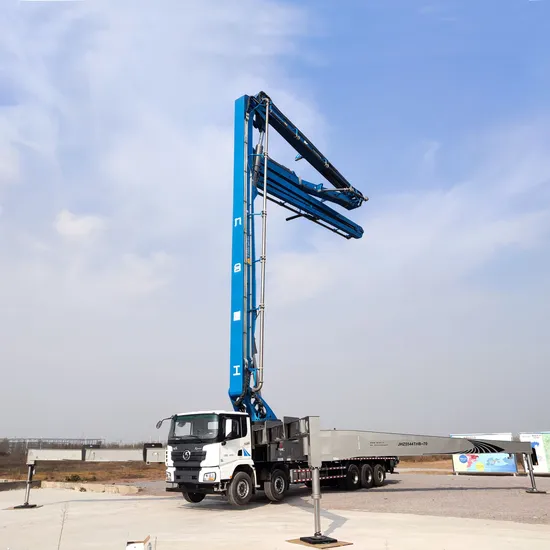

Jiuhe 70m Good Quality Construction Machine Wall Cement Pump Truck Mounted Concrete Boom Pump China Heavy Concrete Pump Truck

Product Description

Jiuhe 70m Good Quality Construction Machine Wall Cement Pump Truck Mounted Concrete Boom Pump China Heavy Concrete Pump Truck

1.Extremely High Pumping Efficiency: The 70-meter pump truck's efficient pumping system can rapidly convey concrete, reducing construction project time and increasing productivity.

2.Suitable for Heavy-Duty Engineering Applications: Ideal for large-scale high-rise buildings, bridges, tunnels, and other heavy-duty projects, it can easily handle challenging concrete pumping tasks.

3.Flexibility and Ease of Operation: The design of Jiuhe Heavy Industry's 70-meter pump truck is flexible and user-friendly, allowing it to adapt to different work scenarios and pumping requirements. Operators can easily control the pumping process, improving work efficiency.

4.Durability and Low Maintenance Costs: Jiuhe Heavy Industry manufactures the pump truck using high-quality materials and advanced manufacturing processes, ensuring exceptional reliability and durability, reducing maintenance costs and downtime.

5.Safety and Easy Maintenance: The 70-meter pump truck is equipped with advanced safety features to ensure job site safety. Additionally, the company provides comprehensive after-sales service and maintenance support to ensure the pump truck's smooth operation and upkeep.
Product Description

I. Chassis
1	Chassis Brand	Foton/Faw/HOWO
2	Driving type	10*4
3	Power	510HP
4	Steering type	Left hand drive or right hand drive
5	Emission standard	EURO 5
II. Boom system
1	Max. Vertical height(M)	69.3
2	Max. Horizontal Concrete Placing radius (M)	65.3
3	Concrete placing depth(M)	51.8
4	Boom structure	70X-6RZ
5	Rotating angle of turret	360°
6	Length of end hose (MM)	3000
7	Concrete delivery pipe dia.	125
III. Electric Control System
1	Working voltage(V):	24
IV. Hydraulic transmission system
1	Type of hydraulic system	Open type
2	System working pressure (Mpa)	32
3	Displacement of main hydraulic oil pump (ml/r)	260
4	Hydraulic fuel tank capacity (l)	880
5	Cooling mode of hydraulic oil	Forced-air Cooling
VII. Pumping system
1	Form of concrete distribution valve	S Valve
2	Concrete cylinder	260
3	Maximum feeding height (MM)	1550
4	Hopper capacity (M3 )	0.65
5	Slump of pumped concrete	160-220
6	Dimension of allowable maximum aggregate (MM)	40
7	Lubricating method	Centralized lubrication
