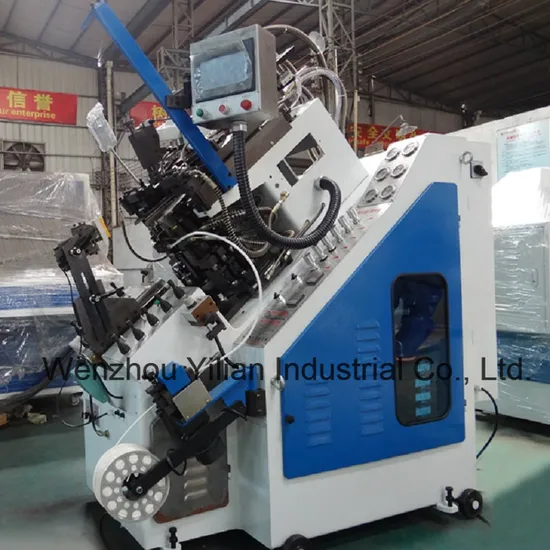

Sport Shoes Industry Machines Toe Lasting Making Machine

Product Description

WENZHOU YILIAN INDUSTRIAL CO., LTD
ADD: ROOM 614,6 BUILDING,WANGDA PLAZA,LONGWANG,WENZHOU, ZHEJIANG,CHINA
Tel:0086-577-55590380 Web: wzyilian.en.made-in-china.com
Machine Characteristic
1. This machine is suitable for lasting the shoes with general and soft insoles and with the heels at height less than 180mm.
2. Fully hydraulic operation system and high-low voltage circuit designing,stable operating system.
3. PLC control electrical system,touch screen and graphical operating system,100 sets actions saving or delete function and self-check function.
4. Unique middle pincer and second pincer quick changing equipment,changing the pincers quickly without any tools,quickly change the shoes shape.
5. The fifth pincer automatic rotary movement increases the lasting perfection of inner part.
6. Excellent forming band removing system effectively reduce the replacing time.

Technical Parameters
Dimensions(L*W*H)	1810*1000*1950mm
Packing size(L*W*H)	1870*1030*2120mm
Production	1500Pairs/8hr
Electric supply	380v/50Hz
Weight	1300KG
Powder	2HP
Electro heat	1Kw

Why Choose Yilian Shoes machine
. 15 years manufacturer experiences and 8 years exporter experience
. Good after-sales service,has after-sales office aboard,help installation,trial and trainning.
. high quality and imported spare parts makes machine good quality
Q1: Are you trading company or manufacturer?
A:We have a factory.You are most welcomed to visit us for any requirement.
Q2: What's the delivery time?
A:Around 15-20 days after we receiving your deposit.
Q3:Can we use our own brand?
A:Yes,we can accept OEM also.
Q4: What about your machine warranty?
A:Our machine's warranty is 1 year (from the installation date)for all machine parts.
Q5: If the machine's spare parts broke, where can I get ?
A:We will give you free spare parts along with the shipment.
In case some parts is broken during warranty,you can easily get them in our aftersales office aboard.
Q6:What is the material of your product?
A:We use 304 stainless steel for our main machine,conveyor use 5mm thinckess carbon steel,very solid and strong.Key electic component we are imported.
Q7:Do you also supply mould?
A:YES,we have shoe mould factory.We can make mould as per customer design.
