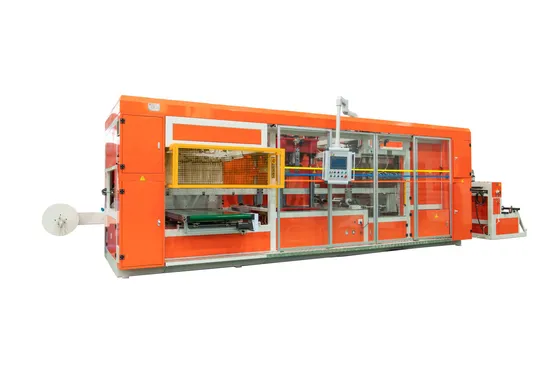

Plastic Egg Tray and Fruit Tray Making Machine

Product Description

Product Introduction
The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.
Fully automatic disposable food container making machine is not only limited to producing disposable food containers, the machine can produce more plastic products such as coffee cup lids, egg trays, mobile phone trays, nursery trays, hardware trays, vegetables and meat trays by changing molds. Product preservation boxes, cosmetic trays, medical injection trays, sauce containers, chocolate boxes, plastic bowls, etc., can cover almost daily necessities, with a wide range of functions, stable operation, fast production efficiency, etc.
Product Details

Technical Parameters
Model	BX-7160	BX-7185
Forming way	Positive and negative pressure
Forming Area	710*600mm	710*850mm
Forming servo power	Up 3KW Down 3KW	Up 4.5kKW Down4.5KW
Punching servo power	UP 5.5kKW Down 4.5KW	Up7.5kKW Down 5.5KW
Pulling servo power	4.5KW
Forming station stroke	Up 150mm Down 150mm
Punching station stroke	Up 150mm Down 150mm
Safety protection	Photoelectric sensor and tempered glass door
Beam	Precision iron girder, die steel guide
Vacuum pump	160M3
Water chiller	10 water chillers
Manipulator	Side and down
Feeding rack	Cylinder push rod type roller feed
Beam adjustment	electric
Power source	380V/400V/460V 50HZ/60HZ
Machine size	8500*2200*2700mm	1100*2200*2700mm
Plastic sheet	PS/PET/ABS/PVC/PE etc
Machine weight	11T	13T

Application

Features
1. Advanced Control System
Our plastic thermoforming machine features an advanced control system, which offers a high level of precision and accuracy during the production process. With its intelligent control module, it can monitor the whole process and adjust accordingly to ensure that the final product meets the required specifications. This translates to reduced errors and wastage, thereby enhancing the economy of the production process.

2. High-Quality Material
The thermoforming machine is made of high-strength materials that are resistant to wear and tear. This guarantees durability and longevity, reducing the cost of maintenance. The materials used are also eco-friendly, making the machine environmentally responsible.

3. Wide Range of Applications
The Automatic Multi-Station Plastic Thermoforming Machine is designed to be versatile, capable of manufacturing a broad range of plastic products. These include food packaging, electronic component covers, and cosmetic packaging, among others. With the machine's flexibility, merchants can diversify their product offerings and enter new markets.
Benefits
1. Cost-Effective Production
The automatic thermoforming machine ensures significant cost savings in the production process. The machine's control system ensures uniformity in the final product, reducing wastage that would lead to decrease costs. The multi-station system also enhances production capacity, reducing the need for additional machinery or workers.

2. Enhanced Quality Control
The advanced control system guarantees high levels of precision and accuracy in the production process. The machine's sophisticated control module can detect errors in real-time, and make the necessary adjustments to ensure compliance with the required specifications. This results in consistent high-quality products, which build merchants and brands' reputation.


3. Reliability and Durability
The use of high-quality materials to manufacture the thermoforming machine guarantees durability and longevity. The merchant can enjoy the machine's benefits for a significantly longer time without incurring high maintenance or repair costs. Furthermore, the machine requires little to no downtime, which means that production is continuous, enhancing the overall operational efficiency.

FAQ
Q1: Are you a factory or trading company? A1: We are a factory, and we export our machines to more than 20 countries since 2015.Q2: How long is the warranty period?A2: We have a professional QC department in charge of products' quality. Q3: How long is the warranty period?A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.Q4: How to install the machine?A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including double-way tickets, hotel, meals.
