Hydrostatic Pressure Tester

Product Description

Product Description

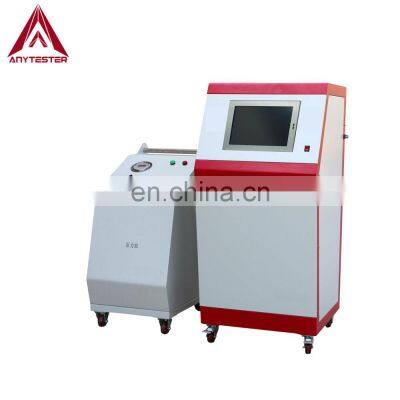

Product DescriptionHydrostatic Pressure TesterAT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.Details and Features★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10★ The dimension of test tank needed bases on the dimension of test pipes★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steelStandard ConfigurationASTM D1598, 1599ASTM F1335ISO 1167, 9080, 1756, 13477GB/T 15560, 18252, 6111CJ/T 108Technical specificationModelAT470Pipe diameter rangeΦ10~Φ2000mmWorking position6 positions (1~50 positions can be customized)Operation modeOperation panel/PC controlPressure range0.2~10MPa (or customized)Pressure resolution0.001MPaPressure control accuracy-1%~+2%Measuring range5%~100% F.S.Timing range1s~10000hTiming accuracy±0.1%Display resolution1sMin. Time setting unitminTemperature control systemRT-95℃ (15~95℃ with refrigerating system)Temperature control accuracy±0.5℃Main body material304# stainless steelPower supply(Pressure control main machine)AC220V, 50HzPower supply (Pressure worksation)3phase, AC380V, 50HzOur CompanyPayment Payment term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContacting UsPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
