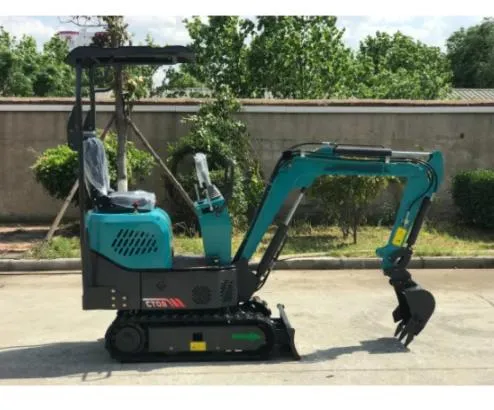

Hq08 (0.85ton) Mini Bagger Blue Color with High Quality
| US$3,850.00-4,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HQ08
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Garden or Farm Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.022
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
6units/20′ Gp, 12units/40′ Gp
Specification
HQ
Trademark
HQ
Origin
Shandong, China
HS Code
8428909090
Production Capacity
500 Piece/Pieces Per Month
Product Description
1.Model Model NO.HQ08
Size
Mini
Certification
CE, ISO9001: 2000
Condition
New
Trademark
HQ
Origin
China
2.Supply Ability
Supply Ability 500 Piece/Pieces per Month
| Model | HQ08 (Euro 5) |
| Operating weight (ton) | 0.85 |
| Bucket capacity (cbm) | 0.022 |
| Engine model | KOOP KD192F-1 |
| Rated power (kw/r/min) | 7.0/3000 |
| Hydraulic pump model | China Brand |
| Max.flow (L/min) | 18 |
| Working pressure (Mpa) | 16 |
| Control valve model | China Brand |
| Swing motor model | OMR200 |
| Travel motor model | SMT310 |
| Fuel tank capacity (L) | 7 |
| Hydraulic oil tank capacity (L) | 14.5 |
| Travel speed (km/h) | 1.9 |
| Swing speed (r/min) | 13 |
| Max. climbing degree (%) | 58 |
| Arm digging force | 4.6 |
| Bucket digging force (KN) | 7.2 |
| Average grounding pressure (Kpa) | 20 |
| A-Overall length (mm) | 2876 |
| B-Overall width (mm) | 840/908 |
| C-Overall height (to top of boom)(mm) | 1040 |
| D-Overall height (to top of cab)(mm) | 1495 |
| E-Counterweight ground clearance(mm) | 385 |
| F-Min. ground clearance (mm) | 132 |
| G-Tail swing radius (mm) | 800 |
| H-Track Ground Length (mm) | 900 |
| J-Track length (mm) | 1233 |
| K-Track gauge (mm) | 670 |
| L-Track width (mm) | 840 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 760 |
| O-Max. digging height (mm) | 2550 |
| P-Max. dumping height (mm) | 1687 |
| Q-Max. digging depth (mm) | 1787 |
| R-Max. vertical wall digging depth (mm) | 1626 |
| T-Max. digging reach (mm) | 3077 |
| U-Max. digging reach at ground level (mm) | 2992 |
| V-Min. swing radius (mm) | 1483 |
| X-Distance between center of rotation and tail length (mm) | 795 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 366 |
| A1-Ground length (in transportion)(mm) | 2650 |
| Arm length (mm) | 800 |
| Boom length (mm) | 1480 |
3.Working Case in the foreign countries of Haiqin Machinery
4.Certificate of Haiqin Machinery
5.MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
6.Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
