Manufacturer OEM/ODM 2MP Full HD Color Global Shutter Camera Ar0234 Sensor 60fps USB2.0 Interface Camera Module

Product Description

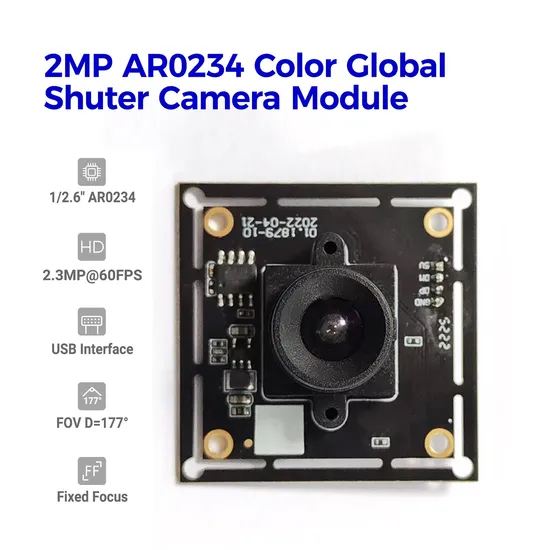

Manufacturer OEM/ODM 2MP Full HD Color Global Shutter Camera AR0234 Sensor 60fps USB2.0 Interface Camera ModuleDescription: Hampo 003-1879 is another type 1080P full HD color image global shutter camera module for accurate and fast capture of moving scenes at 60fps in 2MP resolution. The usb camera adopt a 177degree wide view of angle lens.This Global shutter USB camera features 1/2.6" AR0234 CMOS Image Sensor with pixel size of 3.0µm x 3.0µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details. Both global shutter and high frame rate make it suitable for applications such as Automatic Number Plate Recognition (ANPR),Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Barcode Scanning, Factory Automation, Conveyor Monitoring Cameras, Position tracking and Traffic Monitoring Systems.

Feature
AR0234 High Quality Image Sensor:Based on 2MP color global shutter 1/2.6" Optical Form-factor AR0234 sensor, assembled with a no distortion M12 lens without IR pass filter, sensitive to IR.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.
Resolution: 2.3MP @60fps; Wide Angle Lens: The 1080p global shutter camera module has a wide view of angle,the d=177degree. Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Specifications:

Camera
Pixel	2.3 Mega Pixel
Sensor	1/2.6'' On Semiconductor AR0234 Sensor
Frame Rate	60fps
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Shutter Type	Global Shutter
Chroma	Color image
Focus	Fixed focus
Dynamic range	TDB
Responsivity	56 Ke-/luxsec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition
	Gamma/White balance/Exposure
Lens	Focal length:2.8mm
	FOV: 177° small distortion
Thread Size	M12*P0.5
Working Current	MAX 200mA
Voltage	DC 5V
Auto Exposure Control	Support
Auto White Balance	Support
Auto Gain Control	Support
Interface	USB2.0
Operating Temp	-4°F~158°F (-20°C~+70°C)
PCB Size	32*32MM(Hole pitch compatible with 28x28mm)
Cable Length	Default 1.5M
TTL	22.2MM
Support OS	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

Characteristic of Global Shutter
Global shutter mode in an image sensor allows all the sensor's pixels to start exposing and stop exposing simultaneously for the programmed exposure period during every image acquisition. After the end of the exposure time, pixel data readout begins and proceeds row by row until all pixel data has been read. This produces non-distorted images without wobble or skewing. Global shutter sensors are typically used to capture high-speed moving objects.It can be compared to conventional lens shutters in analog film cameras. Like the iris in the human eye they resemble lens aperture and are probably what you have in mind when thinking of shutters. Related Products

Model	Resolution	Sensor	Frate Rate	Chroma	IR Cut	Shutter Mode
03-1879	2.3MP	AR0234	60fps	RGB	N	Global shutter
03-1858	2.3MP	AR0234	60fps	RGB	Y	Global shutter
03-0606	2MP	AR0230	30fps	RGB	Y	Rolling shutter
03-0766	1MP	OV9281	120fps	IR	N	Global shutter
03-0699	1MP	OV9281	60fps	IR	N	Global shutter

APPLICATIONS
Both global shutter and high frame rate make it suitable for applications such as Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Gesture Recognition, Robotic Vision, Drones, Barcode Scanner, Factory Automation, Conveyor Monitoring Cameras, and Traffic Monitoring Systems.
Company Profile: Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on. To meet customers' needs and ensure a timely delivery, Hampo has equipped 3 SMT lines, 5 module assembly lines and 8 PC camera lines. Those production lines can output 600K camera modules and 767k PC cameras monthly. Hampo has been certified and qualified by ISO quality organization in 2015 and awarded the title of National High-Tech Enterprise in 2019, besides this Hampo has registered more than 20 product patents. Hampo has three product series. Camera module series includes all kinds of video camera modules, MIPI video camera modules and DVP video camera modules etc. PC Cameras for different applications such as video conference, online classes and facing recognitions etc. OID devices for preschool education purposes, such as talking pen, smart pen and children's puzzle electronic products. As member of Hampo Family, we will adhering to the concept of "Market- Lead and Customer First"; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
FAQQ: Why choose camera module with global shutter?
A: If your cameras need to capture moving objects and rapid movement sequences, then shutter type is a crucial criterion alongside sensor technology in determining the quality of the images. Since the advent of global shutter technology in CMOS sensors, there is now a more individual and flexible choice of suitable sensor technology for your application.
Q:How does a global shutter sensor work? A: A global shutter exposes all lines of an image at the same time, 'freezing' the moving object in place. This prevents distortions, which makes global shutter technology the ideal choice for applications with moving objects and rapid movement sequences, including automatic license plate detection as part of traffic monitoring, for example.
.
Q: What advantages this camera module has? 1. High frame rates
2. High resolution
3. Crystal-clear images, even for very short exposures
4. Outstanding noise characteristics, even in poor lighting conditions
5. Broad dynamic range
6. High quantum efficiency of up to 70%
