Handheld Portable Fiber Metal Laser Cleaning Cutting Welding Machine 3 in 1 1500W 2000W 3000W Aluminum Stainless Steel Laser Welder Machine Auto Feeder Price

Product Description

Handheld Portable Fiber Metal Laser Cleaning Cutting Welding Machine 3 in 1 1500W 2000W 3000W Aluminum Stainless Steel Laser Welder Machine Auto Feeder Price
Application:
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metaland its alloy material, can achieve the same precision welding between metal and dissimilar metals, hasbeen widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electricalproducts, automotive and other industries.
Technology Parameter:

Laser power	DW- 1500W Handheld metal laser welding machine
Maximum laser power	11500W/2000W/3000W
Laser wavelength	1064nm
Laser welding depth	≤6mm
Pulse width	≤20ms
Laser welding frequency	≤100Hz
Adjusting range of light spot	0.1-3.0mm
Size of light spot	0.2-3.0mm
Integrity power	≤14KW
Power supply	380V/3-phase/50Hz/60A 220V/Single phase/50Hz
Maximum bearing of standard work bench	≤200kg
Stroke of work bench	200*200mm to 1200*1200mm
Repeating precision of work bench	±0.01mm
Positioning precision of work bench	±0.02mm
Sighting positioning system	Red light,(optional Automatic wire feeder)
Cooling method	Water cooling
Master unit dimensions	1440*840*1360mm

Details pictures:
HandHeld Portable Fiber metal Laser Welding cleaning cutting Machine 3 in 1 1500W 2000W 3000W aluminum Stainless Steel laser Welder Machine auto feeder price
Water cooling control system:
The laser tube working at high temperature can be cooled quickly to ensure that the fiber laser has stable power and efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be no laser,can protect the working life of fiber laser effectively.
Raycus brand laser source has a normal working life of 100,000 hours.The industry's best quality fiber optic manufacturer,microfiber beam 0.001mm;the laser's overall 3-year warranty.

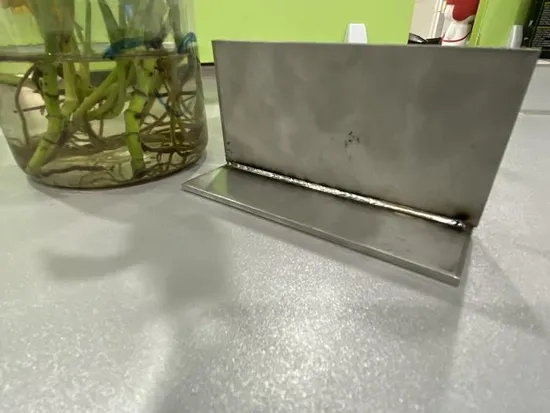

Welding test: 2.5mm stainless steel plate is cut and welded in a square box. Water is added to the test for 24 hours without leaking to ensure that each laser welding machine passes the factory test.
Application Materials:
Fiber hanheld laser welding equipment is suitable for metal weling with Stainless Steel Sheet,Mild Steel Plate,Carbon Steel Sheet,Alloy Steel Plate,Spring Steel Sheet,Iron Plate, Galvanized Iron,Galvanized Sheet,Aluminum Plate,Copper Sheet,Brass Sheet,Bronze Plate,Gold Plate,Silver Plate,Titanium Plate,Metal Sheet,Metal Plate,Metal Tubes and Pipes, etc.
Application Industries:
DOWIN Fiber handheld laser welding machines are widely used insheet metal welding, Manufacturing Billboard,Advertising,Signs,Signage,Metal Letters,LED Letters,Kitchen Ware,Advertising Letters,Sheet Metal Processing,Metals Components and Parts,Ironware, Chassis,Racks & Cabinets Processing,Metal Crafts,Metal Art Ware,Elevator Panel Cutting, Hardware,Auto Parts,Glasses Frame,Electronic Parts,Nameplates, etc.
About us:
DOWIN LASER
Focus on researching and manufacturing of laser machine for over 11 years.
Dowin Technology Co.,Ltd.specializes in R&D and production of various laser equipment,such as laser cutter machine, laser engraving machine and laser marking machine.All series machines are with One-three year's warranty. Also our service support various languages,like English,Spanish, Russian,and so on.Meanwhile,customized equipment are available according to different requirements.Within the laser engraving and cutting field,Dowin laser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability. After years of hard work,Dowinlaser's products have presented in more than 100 countries such as North America, West Europe,South Asia,South America and Mid East etc...
DOWIN LASER Service:
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
*Three years warranty on the whole machine accessories if the machine parts have any problems,we can change the old machine parts to new ones free.
*Exceed three year warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.
3.Dowin Tech Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation.
*Training for normatively turning on/off operation of the machine.
*Instruction of technical parameters, as well as their setting ranges.
*Basic daily cleaning and maintenance for the machine.
*Solutions for common hardware problems.
*Training for other questions and technical suggestions during daily production.
4.Training can be processed in the following ways:
*Workers of customers can come to our factory to get the most professional hand-by-hand training.
*We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.
F A Q :
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: This model is not suitable for me, do you have more models available?
Yes, we can supply many models . (130*250cm,150*300cm,200*300cm...) , and laser wattage (ranging from 500 watts to 5000 watts) If you'd like help determining which laser is right for your application or receive pricing information.
Q4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:How about the documents after shipment? And how long is the delivery time?
After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU)
Q7:Do You Arrange Shipment For The Machines?
Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
For FOB or CIF price, we will arrange shipment for you.
Q8:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q9: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information.
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials. Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If you welder or mold repair, could you tell me your welding thickness? Because different welding thickness need different laser tube power and laser power supplier.
