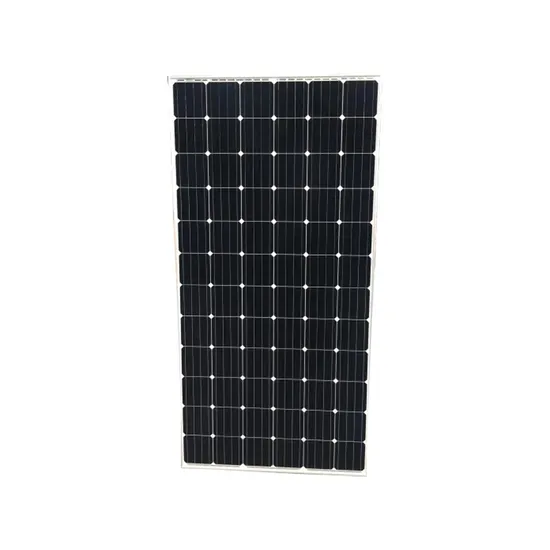

300W 320W 330W 340W Solar Panel Module Monocrystalline Polycrystalline Perc Solar Panels
Basic Info.
Model NO.
FSM-350W-72M
Application
Solar Power System
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Power
370W
Cell
Mono
Voltage
36.20
Weight
20kg
Efficiency
20.50%
Certificate
TUV CE IEC ISO
Junction Box
IP68,Three Diods
Cabels
4mm2 ,Length Can Be Customized
Type
Bifacial, Half Cell, Perc
Panel Efficiency
19.8%~21.2%
Solar Cells
Monocrystalline
Frame
Anodized Aluminum Alloy Frame
Glass
Single Glass3.2.0mm Coated Tempered Glass
Transport Package
2PCS/Carton
Specification
FSM-350W-72M
Trademark
Flagsun
Origin
China, Jiangsu
HS Code
8541402000
Production Capacity
300MW/Year
Packaging & Delivery
Package Size
150.00cm * 40.00cm * 2.00cm
Package Gross Weight
12.800kg
Product Description
Specification| Type | FSM330w,335w,340w,345w,350w |
| Type of Solar Cell | Mono-crystalline,PERC |
| Type of Solar Cell | Mono-crystalline,PERC |
| Number of Cells | 72pcs |
| Size of module | 1956x992x40mm |
| Module, Weight | 22.5 kg |
| Connector/Cross-Section | Cixi renhe |
| Cables,Length(+/-) | 900mm |
| Front Cover Glass | Safety Glass |
| Front Cover Glass,Thickness | 3.2 mm |
| Frame | Anodized Aluminium |
Electrical Data
| Maximum Power | PMpp STC | 330w | 335w | 340w | 345w | 350w |
| Power Tolerance | Δstc | + 3% | + 3% | + 3% | + 3% | + 3% |
| Maximum Power Voltage | UMPP STC | 37.5V | 37.6V | 37.7V | 37.8V | 37.8V |
| Maximum Power Current | IMPP STC | 8.80 A | 8.91A | 9.02A | 9.13A | 9.26A |
| Open Circuit Voltage | Uoc stc | 46.6V | 46.6V | 46.6V | 46.7V | 46.8V |
| Short Circuit Current | ISC STC | 9.85 A | 9.87 A | 9.90 A | 9.92 A | 9.93 A |
| Module Efficiency | ηstc | 17.0% | 17.26% | 17.52% | 17.78% | 18.05% |
| Maximum System Voltage | UÐc | 1000V | 1000V | 1000V | 1000V | 1000V |
| STC:Irradiance 1000 W/m2:SpectrumAM1.5:Cell Temperature25c.Wind0m/s | ||||||
Temperature Coefficients
| Power Coefficient | PMPP | -0.45%/K |
| Voltage Coefficient | Bk(Uoc) | -0.35%/K |
| Current Coefficient | Φk(Isc) | 0.065±0.015%/K |
Power Warranty
10 years performance warranty to 90 %
25 years performance warranty to 80 %
5 years warranty against production and material defects
Certifications
Relate Products
Manufacture Process Company Profile
FAQ
Q1.what's the warrant? A:10 years product warranty, 25 years liner power output warranty
Q2.can you offer me the best price? A:More information of your demand is needed:power capacity/material/Qty/etc, then could we suggest the most suitable one and quote you the best price
Q3. Can I have a sample order for solar panels? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4. How to proceed an order for solar panels? A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5. Is it OK to print my logo on solar panel product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. How can you guarantee the quality? A : Professional product quality inspection team ensures order defective rate; Otherwise, we take full responsibility according to our wholesome after-sales support system.
