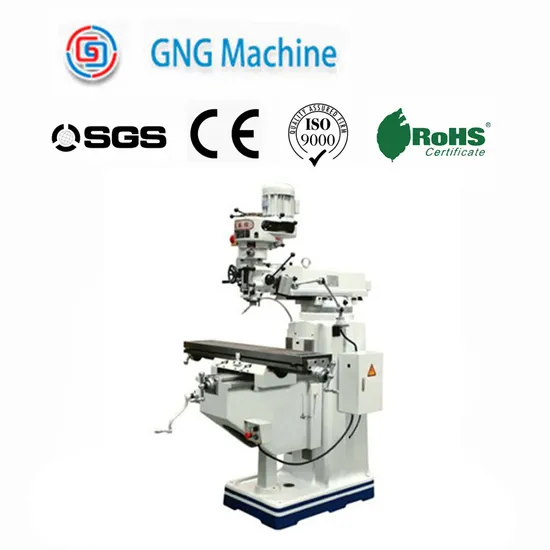

Electric Precision Universal Milling Machine
| US$3,690.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Power(W)
2250W
Dimension(L*W*H)
1516X1550X2080mm
Weight
1450kgs
Warranty
12months
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Shandong
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
CNC or Not: Normal
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6325
Type: Universal
Voltage: 380V
Power(W): 2250W
Dimension(L*W*H): 1516X1550X2080mm
Weight: 1450kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 254X1370(10"X54")
Spindle hole taper R8 or ISO30/40
Spindle travel127
Universal milling machine X6325C
Table size: 254X1270(9"X42")
Long travel: 850mm
Cross travel: 400mm
Vertical travel: 400mm
T-slot number and size: 3X16
RAM travel: 470mm
Distance from spindle nose to table surface: 0-400mm
Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-3600
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1516X1550X2080mm
Gross weight 1450kgs
