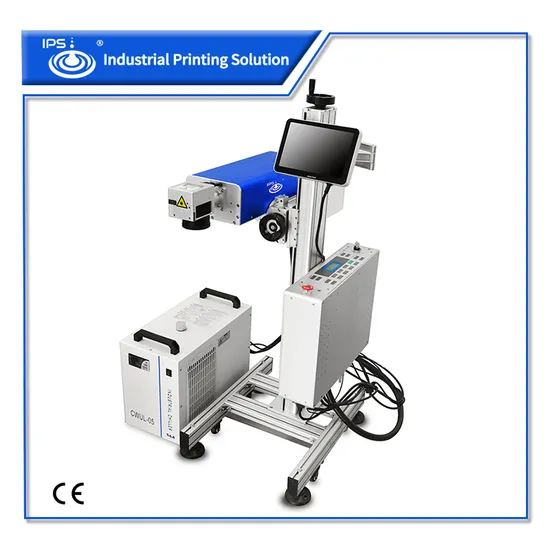

5 Watt UV Laser Marker Pet/PP/PE/HDPE White Plastic Bottle Facemask Serial Number Engraver Marking Machine

Product Description

3W 5W 10W Face Mask Flying Dynamic UV Laser Marking Machine with Water Chiller
Laser power: 3W/5W/10W/15W. The price above is for 5w fly model.
UV Laser is the best choice for face mask , PP/PE/PVC/PET and white products.
Support customized staring screen and logo, multiple language. All language can accept beacause our system is based on android sytem.
Easy-to-use industrial laser markers to apply clean, crisp codes on products
Solutions for engraving, etching, ablation, and color change
Specifically engineered for high-density-(HDPE), low-density polyethylene (LDPE) and synthetic fiber materials such as Tyvek, UV laser marker is ideal for pharmaceutical, medical and cosmetic manufacturers as the surface of the product remains undamaged and the code is resistant to abrasives, chemicals and sterilization processes
UV laser marking is a kind of cold laser technology. The High-energy molecules of ultraviolet photons can directly separate molecules from metal or non-metallic materials which need to be processed, then this separation causes the molecules to be separated from the material so that the way they work does not produce any heat. This is very different from traditional fiber and carbon dioxide laser marking machines.
Differences from other laser marking machineThe wavelength of UV laser is only 355 nm, while fiber is 1064 nm and CO2 is 10.64 μm. When the wavelength is shorter, the laser bean is smaller and more precise, and the Heat-affected zone formed during processing is smaller also, which makes the marking accurate and fine.CO2 laser marking machine and fiber laser marking machine are physical marking method, but UV laser marking machine is a chemical processing method, mainly by photochemical reaction. The difference is that the physical processing method is mainly happed on the surface of the material, while by chemical processing method, the laser can proceed deep inside of the material. Fiber laser marking machine is mainly used in metal material. Due to the heat generated by its beam, it is not suitable for marking high-precision special materials. UV laser marking machine is particularly suitable for high-end market which need ultra-fine processing, such as marking of cosmetics, pharmaceuticals and other packages by polymers materials. Applications
Cosmetics, mobile phones , pharmaceuticals, food packaging, metal, glass, plastic, polymer materials, construction materials, special ABS material, flexible PCB boards, plastic buttons, silicon wafer micropores, electronic component, communications equipment, LCD glass.
SPECIFICATIONS OF IPS-LUV5 F

MODEL	IPS-LUV5 F ( 5W Fly UV Laser Marking Machine)
Laser power	5W
Laser Gun Brand	JPT
Laser Wavelength	355nm
Focus system	Two Red Light with accurate position
Scanning System	Digital Scanning Galvanometer with high seep motor
Indication System	Inner Red Outline Indication
Cooling System	External Water Cooling
Marking Size	75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth	0.01 MM
Min Font Height	0.01 MM
Repetition Accuracy	+-0.002 mm
Pulse Width	<20 ns @30KHZ
Pulse Repetition Rate	10-100KHZ
Optical quality	<1.2
Laser crystal working time	Around 20000 hours
Overall Power	Around 2000 watt
Power Supply	220V/50-60HZ/5A/1P
Flying System	10.4 inch professional fly marking system based on Android
Weight	87 KG
File Format Support	Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
Language support	English,Russian, Thailand, Korea ,Arabic ,Portuguese ( Can develop all language)
