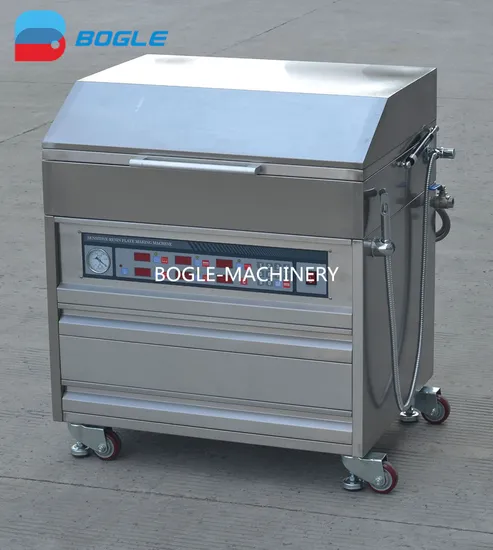

Flexo Printing Sensitive Resin Plate Making Machine

Product Description

Characteristics:
1. The sensitive resin plate making machine adopts stainless steel shell,reliable and durable.
2. Import brand lamps, rectifiers(frequency transforming type is good for sensitive resin plate processing.
3. Japan Toyo vacuum sheet which reflects ultraviolet ray.
4. Computer controller enables it to be easily operated.
5. American digital integrated thermo sensor.
6. Automatically sensitive resin plate washing system.
7. Constant dry, strong wind and quick dry.
8. Equipped the functions of exposure, wash, and dry, a good equipment for processing sensitive resin plates.
Technical Parameter:

Model	Plate making size	Plate thickness	Power	Gross Weight	Dimension
BG-4232	420*320mm	1-7mm	2.2KW	120KGS	0.71*0.61*1.05m
BG-6040	580*380mm	1-7mm	2.3KW	150KGS	0.86*0.71*1.05m
BG-8060	780*580mm	1-7mm	3.5KW	220KGS	1.2*0.98*1.44m
BG-9060	880*580mm	1-7mm	3.7KW	260KGS	1.3*0.98*1.44m
BG-1060	980*580mm	1-7mm	3.8KW	300KGS	1.4*0.98*1.44m
BG-1260	1180*580mm	1-7mm	3.9KW	360KGS	1.6*0.98*1.48m
BG-1290	1180*880mm	1-7mm	4.2KW	400KGS	1.6*1.33*1.48m
BG-1210	1180*980mm	1-7mm	4.5KW	460KGS	1.6*1.43*1.48m

Machine Photos:
Our Factory:
Our Customer Feedback:
Certificate:
Package & Loading:
FAQ:
1.:Are you manufacturer or trading company ?
We are manufacture, specializing in plastic package machinery filed more than 15 years, we have own export sale team.
2. Where is your factory?
Our factory is located in Ruian,Zhejiang Province, China, about 1hour far away from Shanghai or Guangzhou, after you arrive Wenzhou Airport or Ruian Railway Station, we will drive and pick you up there, welcome to visit our factory.
3 What's the deliery time?
Generally, the delivery time is about 30-40 days, if you need machine urgently, we also could shorten the delivery time.
4.:What's the quality warranty period?
one year quality guarantee, within the period, freely provide replacement at the buyer delivery cost, life long after sale service and technical support,

5:What's the package method?
The machine will be cleaned and packed with stretch plastic film to avoid dust.

6.Does your factory provide installation and trainning service?
We could appoint engineer go to the buyer's factory to do installation and trainning at the buyer's cost.
7:What are your terms of payment?
We accept T/T and L/C.
